Two Targets Rf Magnetron Co Sputtering Non Metal Coating Machine - China

price: contact company for price

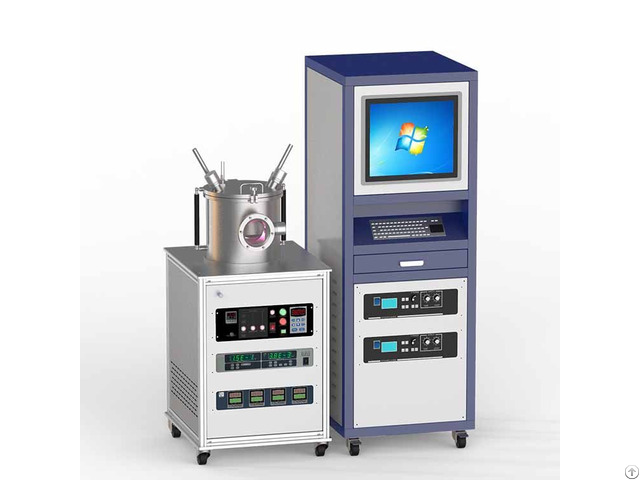

Dual-target RF magnetron sputtering coater CY-MSP300S-2RF is a cost-effective vacuum PVD coating equipment independently developed by our company.

It is standardized, modular and customizable.

There are 1-inch or 2-inch magnetron targets for you to choose.

Customers can choose the target according to the size of the substrate to be coated.

The device is equipped with two 300W RF power supply.

The DC power supply can be used for the preparation of metal film, and the RF power supply can be used for the preparation of non-metal.

The two targets can meet the needs of multi-layer or multiple coatings.

The coating machine is equipped with two-channel high-precision mass flowmeter.

If you have other requirements, you can customize the gas path of up to four-channel mass flowmeters to meet the complex gas environment construction requirements.

The instrument is equipped with advanced turbomolecular pump sets, the ultimate vacuum is up to 1.0E-5Pa, and other types of molecular pumps are available for purchase.

Molecular pump gas path is controlled by multiple solenoid valves, you can open the chamber to take out the sample without shutting down the pump, greatly improving your work efficiency.

This product can be equipped with an integrated industrial computer to control the system.

In the computer program, most functions such as vacuum pump control and sputtering power control can be realized, which can further improve your experimental efficiency.

Application:

The device can be used for preparing single or multi-layer ceramic films, dielectric films, optical films, oxide films, hard films, PTFE films, and the like.

Compared with similar equipment, the dual-target magnetron sputtering coating machine is not only widely used, but also has the advantages of small size and easy operation, and is an ideal equipment for preparing a material film in a laboratory.

Technical parameters:

Sample stage Size: φ185mm

Temperature control accuracy: ±1℃

Heating temperature: Max 500℃

Rotate speed: 1-20rpm adjustable

Magnetron Sputtering target head Quantity: 2”×2 (1”, 2” optional)

Water chiller: Circulating water chiller with flow rate of 10L/min

Vacuum chamber Chamber size: φ300mm×300mm

Watch window: φ100mm

Chamber material: Stainless steel

Opening mode: Top cover open

Mass flowmeter 2 channels; measuring range 100SCCM; 100SCCM (can be customized according to customer needs)

Vacuum system Model: CY-GZK103-A

Pumping interface: KF40

Molecular pump: CY-600

Exhaust interface: KF16

Backing pump: rotary vane pump

Vacuum measurement: Compound vacuum gauge

Ultimate vacuum: 1.0E-5Pa

Power supply: C;220V 50/60Hz

Pumping rate: Molecular pump: 600L/S rotary vane pump: 1.1L/S

Comprehensive gas pumping performance: vacuum up to 1.0E-3Pa in 20 minutes

Power configuration RF power supply×2;Max output power: RF 300 W

Other parameters Supply voltage: AC220V, 50Hz

Overall size: 600mm×650mm×1280mm

Total power: 2.5KW

Total Weight: About 300kg


Company Contact:


  • Phone: +86 371 5519 9322

  • Address: No. 820, 8th Floor, 1st Unit, 9th Block, Cuizhu Street, High-Tech Zone, Zhengzhou, Henan, China, zhengzhou , henan , China

  • Email: Email


Published date: July 30, 2020 - Modified date: July 30, 2020

  • Business Description: Founded in 2013 by a group of professional engineers.

    CY is a high and new technology enterprise registered in Zhengzhou,Henan province.

    CY Scientific Instrument mainly provide regular furnace for lab.

    Also do customized furnace and some other related accessories and equpments in high quality and low cost precision machines for material research and R&D lab.
