Universal Hardness Tester Uht 900 - China

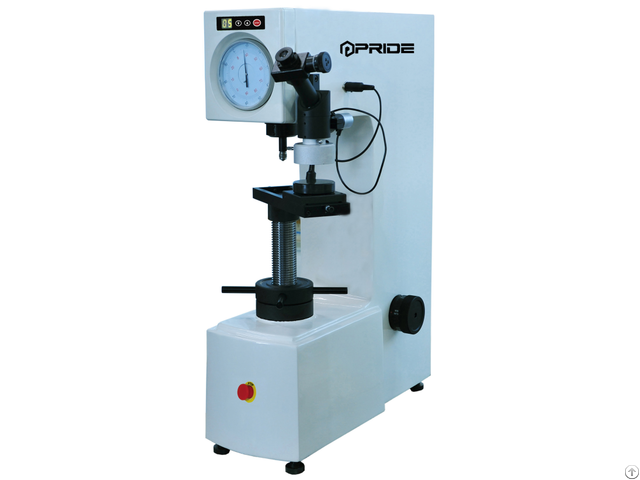

UHT-900 universal hardness tester with Brinell, Rockwell and Vickers, 3 kinds of measuring method, and as well as 7 steps testing force is able to meet the needs of many kinds of hardness test requirements for material.

Testing force can be loaded, kept and unloaded automatically.

Therefore the tester is easy to use and widely welcomed by many users.

Hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials, etc.

Features:

● It is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.

● Equiped 7-testing-foce and 5-indenter, it is universal to measure a lot of material.

● Dwell time from 1 to 60S can be setup by the “time key” on the panel, it is much conveninent than the setup on the manual hardness tester;

● Force knob adopts the metall material to replace the plastic, it improves the instrument using-life greatly;

● Loading, dwell and unloading is driven by electronic motor automaticly, doesn’t need the operator to handle it, it eliminates the human operating error maxiumly.

Technical specifications：

Rockwell Scales HRA, HRB, HRC

Rockwell Testing Force 60Kgf (588.4N), 100Kgf (980.7N), 150Kgf (1471N)

Brinell Scales HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5, HBW10/100, HBW2.5/187.5

Brinell Testing Force 30Kgf (294.2N), 31.25Kgf (306.5N), 62.5Kgf (612.9N), 100Kgf (980.7N), 187.5Kgf (1839N)

Vickers Scales HV30, HV100

Vickers Testing Force 30Kgf (294.2N), 100Kgf (980.7N)

Rockwell Hardness Indication Analogue display

Rockwell Hardness Resolution 1HR

Brinell Indention Reading 37.5x Measuring microscope(15x eyepiece and 2.5x objective)

Brinell Value Reading Inspect the Brinell hardness table

Vickers Indention Reading 75x Measuring microscope(15x eyepiece and 2.5x objective)

Vickers Value Reading Inspect the Vickers hardness table

Dwell Time Adjustable 2 ~ 60S

Max.

Height of Specimen 175mm

Max.

depth of specimen 165mm

Maximum of Specimen Rockwell: 170mm; Brinell: 140mm, Vickers; 140mm

Dimension (L*W*H) 520x215x700mm

Plywood Packing Dimension 630x440x960mm

Gross/Net Weight 120/90Kg

Power Supply 110V/220V, 60/50Hz

Accuracy Conform to ASTM E-18; ISO6508; EN-ISO6507
