Vertical Muffle Furnace - China

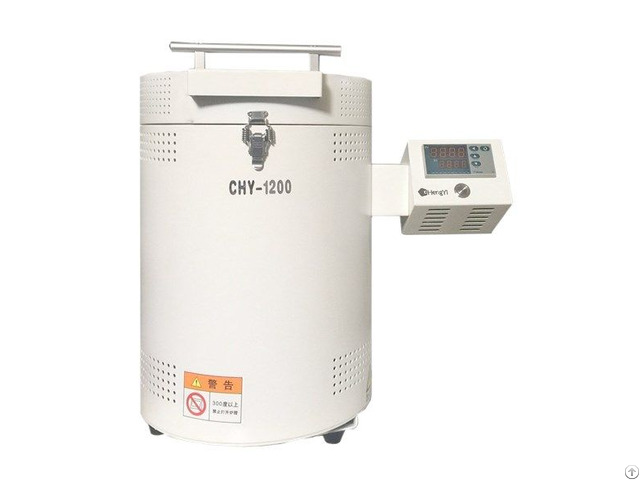

CHY-J1220 Laboratory Crucible Vertical Muffle Furnace Lab Muffle Furnace Manufacturer

Vertical Muffle Furnace CHENGYI Customized Muffle Furnace

1.150*150*200mm chamber dimension

2 - high quality ceramic fiber chamber

3 - PID Programmable controller

4 - Heavy duty double layer structure CHENGYI Muffle Furnace APPLICATION

1 - laboratory heat thermal processing cement, building materials industry etc

2 - Pharmaceutical medicines inspection, preteatment of medical sample

3 - Analytical Chemistry Industry: water analysis and environmental analysis

4 - Laboratory Gemstone, Crystal Growthing Electric Lab Muffle Furnace PARAMETERS

1 Product Name 1200 Degree Vertical Muffle Furnace

2 Model J1220

3 Furnace Door Top open type

4 Display Model Highlight LED display

5 Maximum Temperature 1150℃

6 Working Temperature ≤1100℃

7 Heating rate ≤20℃/min Suggest: 10℃/min

8 Heating zones Single heating zone

9 Hearth dimensions 150mm×150mm×200mm

10 Hearth volume 3L

11 Control mode Intelligent PID auto control

12 Temperature Accuracy ±1℃

13 Temperature curve 30 segments programmable

14 Over heat alarm Have

15 Overcurrent protection Have

16 Thermocouple Failure Protection Have

17 Temperature Sensor K-type thermocouple

18 Heating Element Fe-Cr-Al Alloy doped by Mo

19 Hearth Material high purity alumina fiber

20 After-sales service 12 month warranty, durable maintaince and repair support

21 Power Supply 220V 50HZ

22 Rated power 2.0kw

23 Overall dimensions 500×340×490 (mm )

24 Packing 3-ply wooden case

25 Accessories Plate, Protective Glove, Crucible Tong, Crucible, User Manual.
