Xyz Axis Three Nozzle Ultrasonic Spray Pyrolysis Coater - China

price: contact company for price

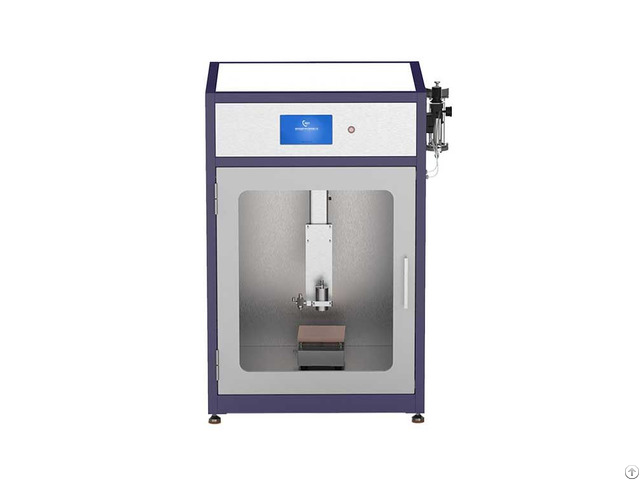

Xyz Axis Three Nozzle Ultrasonic Spray Pyrolysis Coater

Products Photos Catalog Xyz Axis Nozzle Photos Catalog

Ultrasonic spray pyrolysis coater

technical parameters:

Supply voltage AC220V, 50Hz

Max power 3.5KW (including compressor + peristaltic pump 1.5KW)

Ultrasonic sprayer 40KHz 130W

Liquid viscosity 1-50mPa·s (cP)

Nozzle stroke X-Y-Z axis up to 190mm

Moving speed 10-180mm/s (x-axis direction) 10-180mm/s (Y-axis direction)

Substrate heater plate 150mm×150mm

Max temperature 500℃

Temperature control method AI-PID temperature control

dispensing tank capacity 50mL / 250mL (two containers included)

Peristaltic pump dispensing rate 0.006-41mL/min

Control method Industrial computer + instrument panel

Overall size 850mm×850mm×1450mm


Company Contact:


  • Phone: +86 371 5519 9322

  • Address: No. 820, 8th Floor, 1st Unit, 9th Block, Cuizhu Street, High-Tech Zone, Zhengzhou, Henan, China, zhengzhou , henan , China

  • Email: Email


Published date: July 31, 2020 - Modified date: August 1, 2020

  • Business Description: Founded in 2013 by a group of professional engineers.

    CY is a high and new technology enterprise registered in Zhengzhou,Henan province.

    CY Scientific Instrument mainly provide regular furnace for lab.

    Also do customized furnace and some other related accessories and equpments in high quality and low cost precision machines for material research and R&D lab.
