Yc 1000 Lab Spray Granulator Supplier - China

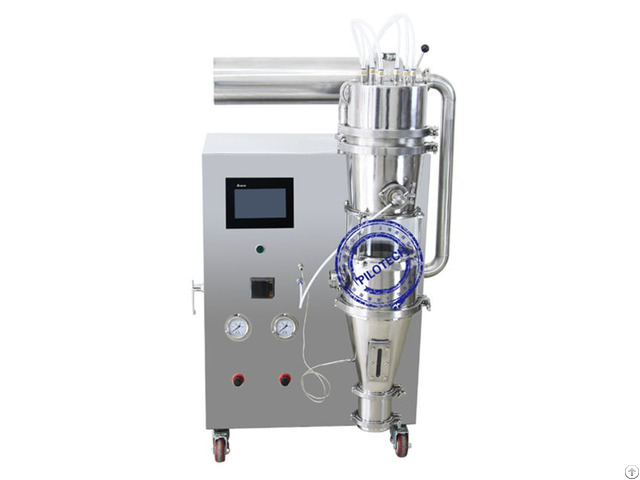

YC-1000 Laboratory Granulator (fluid bed) One machine can be used for spray drying, spray granulation and spray coating.

Spray drying is a low temperature type, suitable for spray drying of traditional Chinese medicine & natural product extracts, which has no wall sticking.

Spray granulation is suitable for granulation of sugary materials, with the new backflushing system, high material yield.

Suitable for coating of small granular materials, uniform coating.

Laboratory Granulator (fluid bed) YC-1000 laboratory spray granulator integrates spray drying and fluid bed granulation function.

One machine realizes the functions of two machines, which can save the experimental site and expense.

It is an innovative product of spray granulation.

Lab granulator has been produced in our company since 2005 - Over 15 years of producing experience, there are more than 2, 000 clients worldwide using our lab granulators.

Pilotech YC-1000 lab granulator is a kind of spray granulator, or you can call it fluidized bed granulator.

It has two granulation modes: 1) The sample is mainly composed of liquid and transported to the spray head by a peristaltic pump.

The sample is evenly sprayed over the granulation chamber under the effect of compressed air.

And base materials such as fluidized dextrin, etc.

are placed in the granulation chamber in advance.

Thereby centering base materials, atomized samples are caked on the base materials to be granulated into required particles; 2) The sample is in the form of small particles and placed in the cavity of fluidized bed in advance.

It’s fluidized due to hot air.

The binder is atomized to form a bridge between small particles.

So these small particles are gradually caked and granulated into the required particles ranging from 200μm to 5mm.

Pilotech YC-1000 lab granulator has multiple specifications, including 300g/ batch, 500g/ batch, 1000g/ batch, 3000g/ batch, and 5000g/ batch.

Frame of the Pilotech lab granulator is made of SUS304 stainless steel.

Major parts are from international famous brands.

The granulating chamber is made of SUS304 stainless steel and high borosilicate glass.

It’s durable and used for observing the whole experiment.

Top spray and bottom spray are designed for our lab granulator, of which, the top spray is used for fluidized-bed granulation, while the bottom spray for fluidized-bed coating.

Side spray (tangent spray) is also designed for the 3KG and 5KG granulators.

Spray drying function is also added for the 1KG lab granulator.

This way, you don’t need to buy a lab spray dryer for drying sample.

Pilotech YC-1000 lab granulator adopts touch screen with a PLC control mode.

Both the operating interface and operation manual are in English.

At the same time, we also provide a video to demonstrate every operating step in details, as if an engineer is by your side.

Letting you know how to operate and make the full use of the lab granulator.

If you want know more about YC-1000 lab granulator, Please feel free to ask us catalog & a quick quote now.
