Copper Bar Rebar Tensile Testing Machine - China

price: 100000.00 Dollar US$

Application

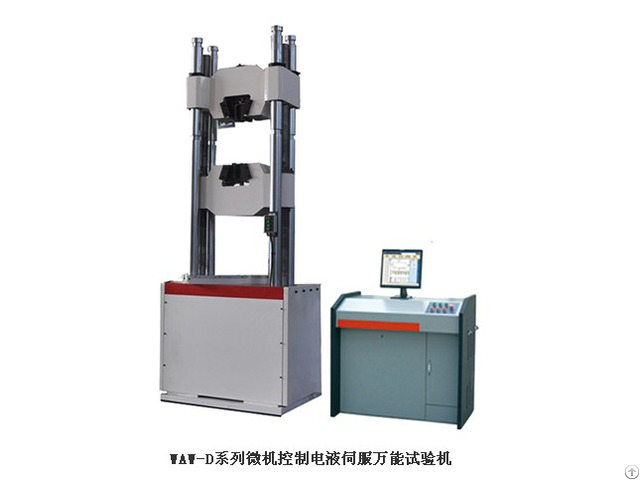

Computer control electro-hydraulic servo universal testing machine is mainly designed for tension, compression, bending, and cutting test of metal materials.

This machine is also used for compression and bending test of nonmetal materials, such as cement, concrete and son on.

Equipping with special auxiliaries , it can be used for mechanical property testing of fastener, wire rope and components.

It is the ideal testing equipment for mining industries, universities and engineering quality testing department, research institution and so on.

Structure and functions

The load frame use advanced technique, with compact structure and reasonable layout;

Adopt hydraulic pressure sensor, which is with feature of strong anti impact and long-life working;

Unique screw gap eliminating structure can guarantee the accuracy of the test;

Independent hydraulic clamping structure can guarantee the reliability of the system;

Limitation and electrical protection system can ensure the security of using;

Test data uses access database management, which is powerful and convenience;

Preserved data port can connect with the network directly and share resource.

Technical specification

Model WAW-300D WAW-600D WAW-1000D

Max.

Load 300KN 600KN 1000KN

Measuring range 6-300KN 12-600KN 20KN-1000KN

Load accuracy ± 1% of indicated value

Displacement resolution 0.01mm

Piston stroke 250mm

Tension test space (including piston stroke) 800mm 850mm

Compression test space 700mm 750mm

Diameter of round specimen Φ6-Φ26mm Φ13-40mm Φ13-60mm

Thickness of flat specimen 0-15mm 0-30mm 0-40mm

Max.

Width of flat specimen 80mm 80mm 120mm

Clamping method Built-in hydraulic clamp

Diameter of cutting specimen Φ10mm

Platen size 200x200mm

3 points bending fixture space 450mm

The width of bending anvil 140mm

Support column diameter Φ30mm Φ40mm

Diameter of load-frame 990x600x2435mm 1100x770x2490mm

Diameter of control cabinet 1140x700x930mm

Weight 2800KG 3000KG 4700KG

Power supply Three phases AC 380V 50Hz
