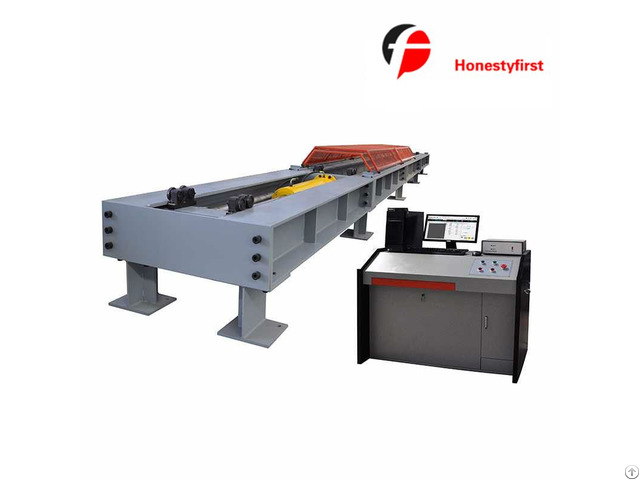

Horizontal Tensile Tester Lab Instrument Force Testing Machine - China

CONTACT: Jinan Honesty First Test Equipment Co., Ltd Contact: Peter Wen(General Manager) Tel: +86 13906415399(Wechat)(Line) (whatsApp) Skype: testing_machine QQ 1067286983 Product introduction

This machine is mainly used for testing long specimen like wire and cable, conveyor belt, safety rope, safety bell, chain and so on.

And it also complete tension, compression and bending test.

Mainly components: host frame, oil resource control cabinet, computer measurement and control system.

The computer automatically control the test progress.

The host adopts frame structure, double acting cylinder applied test force, load sensor measuring force, pull type encoder measuring displacement.

The computer real-time display the test force and testing curve and automatically processing the test data.

The specimen clamping method adopts the bolt type structure.

Technical specification

Max.

Test force ( KN ) 300 / 500 / 1000 / 3000 / 5000 / 10000

Accuracy of testing force ±1% of setting force Piston stroke ( mm ) 1000 ( can be customized )

Measuring range 2%-100%FS

Test space ( mm ) 6000 ( can be customized )

Adjusting way of test space Pushing by hydraulic cylinder;

Fixed by bolt

Test speed 0-120mm/min( can be customized )

Power supply Three phases AC 380V 50Hz

Company Contact:

• Posted By: Jinan Honesty First Test Equipment Co.,Ltd

• Phone: +8613906415399

• Address: No.29,Nanxinzhuang West Road, Huaiyin District, Jinan City, Shandong Province, jinan , Shandong , China

• Email:

• Website: http://www.honestyft.com

• Business Description: http: //www.

  honestyft.

  com

  CONTACT:

  Jinan Honesty First Test Equipment Co.,Ltd

  Contact: Peter Wen(General Manager)

  Tel: +86 13906415399(Wechat)(Line) (whatsApp)

  Skype: testing_machine

  QQ 1067286983

  Email: jnhesion@126 - com

  Corpora tion introduction:

  Jinan Honesty First Test Equipment Co.,Ltd was founded in 2008 - Our company headquarters is located in Jinan City of Shandong Province.

  As professional designer, manufacturer and OEM producer for universal testing machine used for testing mechanical performance of metal, non-metal and composite materials.

  Our company insists on the most important principle is product quality.

  With advanced technology and first class technician, now many categories of products put into international and domestic markets.

  Our main products are Horizontal tensile Testing Machine, Hydraulic Universal Testing Machine, Electronic Universal Testing Machine, Compression Testing Machine, Fatigue Testing Machine, Dynamic & static Universal Testing Machine, Non destructive Testing, Spring Testing Machine, Rubber & plastic Testing Machine, Textile & fabric Testing Machine, Measuring Tolls, Tools ＆Hardware, Friction and abrasion Testing Machine, Impact Testing Machine, Torsion Testing Machine , ceramics testing machine, plastics test machine, polymers testing machine, metals test equipment, composites test instrument, Lathe, Overhead Crane, Welding Equipment, Engraving Machine, Balancing Machine and so on.

  The products meet UL, ASTM, JIS, GB, ISO, TAPPI, EN, BS.

  and other domestic and international standards.

  “ To provide reasonable resolutions ＆to meet our customer request” is our goal.

  We sincerely invite customer to visit us to reach win-win cooperation
