3d Cmm Measuring Machine - China

price: 35000.00 Dollar US$

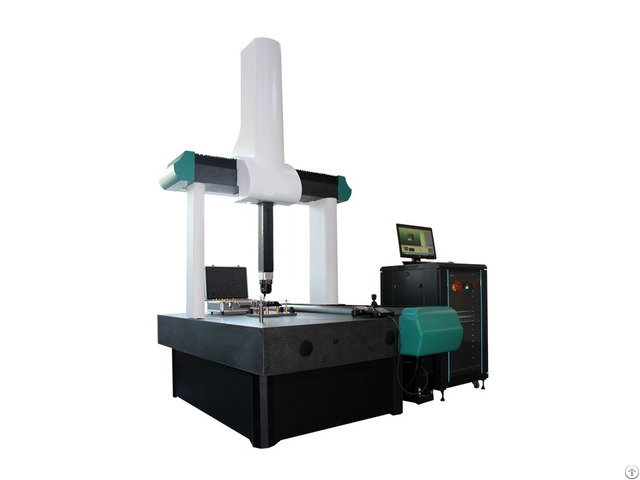

3d Cmm Measuring Machine

Products Photos Catalog Cmm Measuring Machine Photos Catalog

Characteristics:

1 - Adoption of integrated granite-material guide ways makes sure of stable thermal performance of themselves; 2 - The totally enclosed surrounding guide way structure makes measuring more accurate; 3 - 21 terms of compensation technique as to mechanical geometric errors improve the machine’s precision greatly; 4 - Three axis’s adoption of quiescent air pressure air-bearing guide way, comprised of air bearings which are self-cleaning, pre-loading and high precision, guarantees the large span of bearings, strong anti-sways, small resistance, no abrasion and stable motion; 5 - Unenclosed structure leads to various measurement configuration solutions.

Therefore, measurement experience gets so flexible; 6 - Adoption of advances F.E.M.

(finite element method) makes it have a stable and reliable resistance to effective deformation.

Application range:

Wind power, Military industry, Automobile, Mould; Model: LIT575HD;

MPEE (μm): 1.8+2.5L/1000;

MPEP (μm): 1.8;

Dimension (mm) (Lx*Ly*Lz): 1217*1788*2466;

Measuring range (mm) (Dx*Dy*Dz): 500*700*500;

Load capacity (Kg): 1000;


Company Contact:


  • Phone: +86-29-89182431

  • Address: Road Tangyan, Xi'an , Shaanxi , China

  • Email: Email


Published date: April 26, 2021

  • Business Description: Hyde Science and Technology Limited, established in 2010,is engaged in studying and developing the climate testing techniques, manufacturing environmental testing equipment, researching and developing management software.
