Aatcc Rubbing Color Fastness Tester - China

Electric and manual rubbing color fastness all have three models: the traditional manual rubbing fastness tester, electric rubbing color fastness, and manual rotation of the rubbing color fastness tester.

The rubbing color fastness tester meets the following standards, as well as other industrial and organizational testing methods.

(The address and contact details Standards AATCC 8 AATCC 165 ASTM F1329

EN ISO 105-X12 ISO 105-D02 JIS K6328

JIS L0849 JIS L1084 Specification Physical performance Installation environment

Length: 60cm (23.6 inches) for indoor use

Width: 22.2cm (8.75 inches) Height: up to 2000m

Height: 27cm (10.6 inches) Ambient temperature: 16 ~ 29 ℃ (60 ~ 85 ℉)

Relative humidity: up to 80%

Structure: Cold rolled steel plate AC power supply voltage fluctuation: Rated voltage ± 10%

Surface treatment: gray paint Overpressure level: Ⅱ pollution level: 2

Shipping Weight: 13kg (13lb)

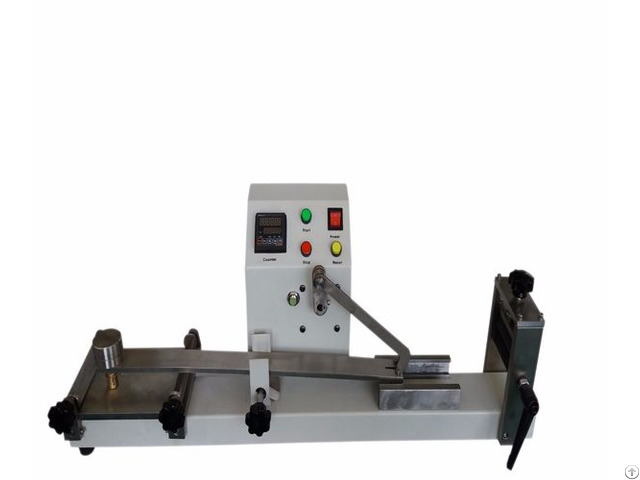

Power: 115V, 60Hz, 1.5A 230V, 50Hz, 0.75A Operate method Electric friction color fastness tester, can be used frequently and do long time test.

The model is running at a constant speed of 60 rpm, which can automatically stops the test, with a digital counter and a removable drive arm safety cover.

Before the test, firstly, installing the sandpaper on the instrument base to prevent the sample from sliding.

Then, the sample is placed over the sandpaper and fixed with the sample holder.

The test cloth is fixed to the friction head with a catapult.

The device uses a digital counter to automatically record the number of work until the preset number of strokes has been reached, stopped and through the buzzer to alarm.

The friction head can exert 9 N pressure to the sample with a preset stroke of 104 ± 3 mm (4 inches).

The stroke length can also be adjusted to 50 or 76 mm (2 or 3 inches) depending on the sample size.

After completing the preset number of strokes, remove the test cloth and evaluate the resulting ring pattern according to the sample standard.

Company Contact:

• Posted By: Qinsun Instruments (Shanghai) Co., Ltd.

• Phone: +862164200566

• Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

  We have our own textile testing lab.

  Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

  We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

  We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

  For the laboratory requirements, we also bring forth the new practical test instruments.

  Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
