Ac Dc Hipot Test Set Hvt 70 50 - Ukraine

price: contact company for price

Ac Dc Hipot Test Set Hvt 70 50

Products Photos Catalog Hipot Test Hvt Photos Catalog

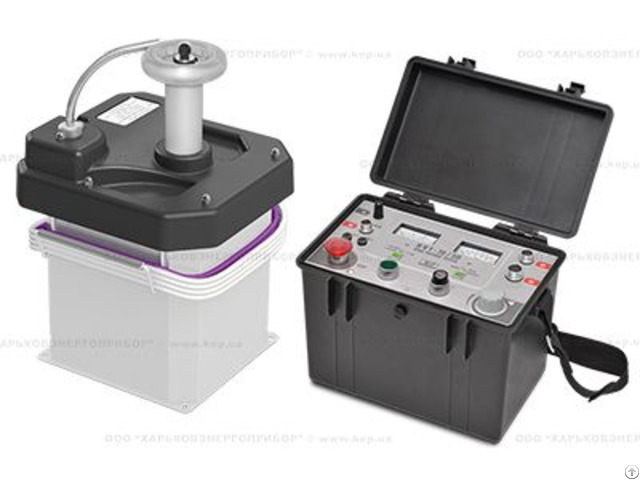

High Voltage Tester HVT-70/50 perform DC high-voltage testing of power cables (IEC 60502-2) up to 70 kV, power cables accessories (IEC 61442) as well as AC high-voltage testing, up to 50 kV at 50 Hz, of switchgear, reclosers, dielectric insulators, highvoltage dischargers (arresters), busbars and other dielectric materials with relatively low electric capacitance.

Technical SpecificationsParameterVa lue

Supply voltage single-phase alternating current, V220 ± 22

Frequency, Hz50 ± 2

Maximum power consumption, kVA, max3

Highest output voltage, kV:

- AC50

- DC70

Highest output current, mA:

- on AC voltage 44

- on DC voltage 14

Reduced voltage error, %, max:

- AC voltage from 2 kV to 50 kV ± 3

- DC voltage from 2 kV to 70 kV± 3

Reduced current error, %, max:

- AC from 1, 0 mA to 45, 0 mA ± 3

- DC from 0, 5 mA to 14, 5 mA ± 3

Maximum current threshold on the high-voltage side, mA, max:

- AC voltage 45

- DC voltage 14, 5

Control Unit dimensions, mm, max266 × 240 × 354

Control Unit Weight, kg, max13

High Voltage Unit dimensions, mm, max 360×310×500

High Voltage Unit weight, kg, max33

lifespan, years, avg10


Company Contact:


  • Phone: 38 0503237124

  • Address: 61075, Ukraine , Kharkov, 9, Generala Momota Str., Kharkiv , Ukraine

  • Email: Email


Published date: August 18, 2016 - Modified date: August 21, 2016

  • Business Description: KharkovEnergoPribor Ltd.

    We create high-voltage testing and diagnostic equipment for maintenance of utilities, as well as objects of electrical infrastructure and the energy sector.

    Our service center performs installation, commissioning and maintenance of equipment, trains customer personnel and provides remote technical support.

    The company has a quality management system in accordance with ISO 9001.
