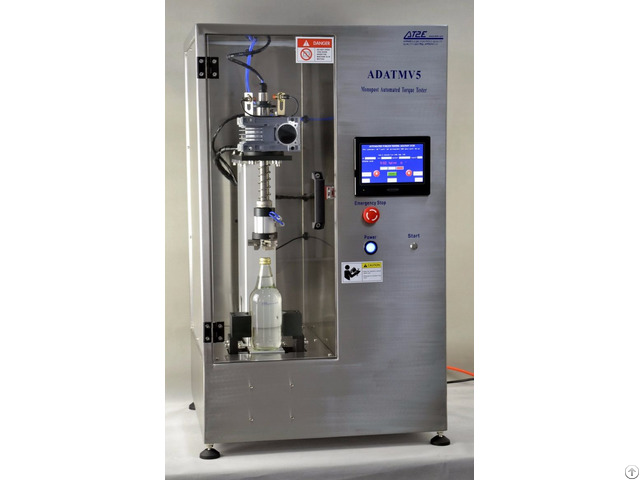

Adatmv5 Monopost Automated Torque Tester - China

Technical specifications:

• Using by touch screen display

• Measures in opening and closing directions

• Measuring range: 00.00 to 99.00 Kgf.

cm

• 6 measuring cycles: Torque closing / Reach position / Release + break / Release + break + over screw / Non-destructive test / Cork extraction test

• Units: Kgf.

cm / N.

m / Inch.

lbs

• Rotating angle & speed adjustable under certain cycle

• Accuracy:  0.5 % of full scale

• 30 products memorization

• 10 thresholds (limits) option

• 10 operators memorization

• Configuration by protected password (administrator)

• Memorization up to 9999 measures (transferable)

• Dynamic display: statistics / hour / date

• Display: product name / operator / batch N° / line N°

• 1 RS232 output and 1 printer output (software & printer)

• Language: English

• Delivered with calibration certificate COFRAC

• 110 / 230 V - 50/60 Hz

Automated part:

• Safety door

• Automatic zero before restarting cycle

• Settable height of column for all samples

• Easy-fast selector for cycles

• Settable speed for opening and closing operations

• Customized cycles

• Special pneumatic chuck available

• Special multi format system for both bottle and preforms

• Dynamometric system

Mechanical specifications:

• Stainless steel Frame

• Choice of measuring chucks: Beverage / Cosmetic / Pharmacy

• Dimensions: 61x57x108 cm

• Weight: 94 kg
