Advanced Multi Specification Fuel Water Separator Test Station - China

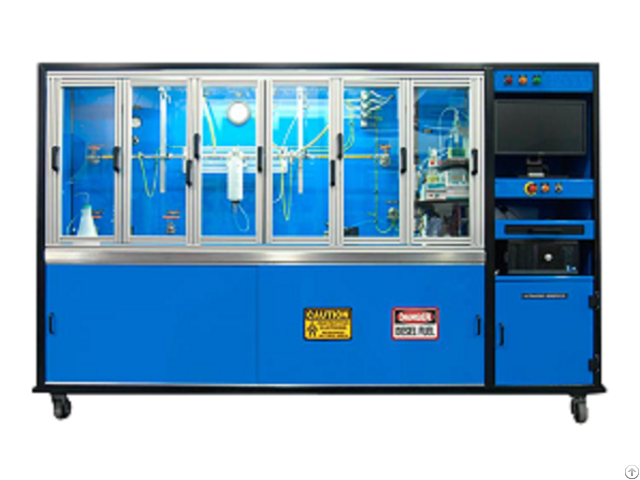

This test stand, meets ISO 16332, SAE J1488 and SAE J1839 standards, is an unattended automatic system for testing fuel /water separators on diesel engines.

This system uses automatic injection, sound wave degradation and titration system, with high precision and high reproducibility.

Application Items Parameters

Flow range 1-25 Lpm

Flow precision (double flow meter) 0.1%

Temperature control ±2ºC

Static pressure control 0-140 kPa ±14 kPa (0-20 psig ±2 psig)

Pressure difference control 1-260 hPa ±1 hPa (0-4 psi ±0.15 psi)

Fuel tank capacity 325 L

Fuel tank export configuration SAE & ISO

Tank capacity 15 L

Box and poping materials Stainless steel

Bleaching earth modulation circuit Included

Optional fuel preparation 75 L, Attached bleaching earth treatment system Circuits analysis Items Parameters

Auto-injection &Auto-titration Real-Time Results

Reproducibility 2%±0.1%

Water content titration measurement system Reproducibility 0.3% Water circuits Items Parameters

Ionic water supply rate 0.9 Lpm

Metering pump injection Automatic Accurate proportional control

Injection rate 1.0-576 mLpm

Filter grade 30 ppm @ 25 Lpm w/ drainage

Optional water collection car 75 L UI, Controller and DAS Items Parameters

CPU Dell OptiPlex w/ Intel Core™ Processor

Operation sytem Microsoft Windows 7

UI 22" LCD Display, Keyboard and Mouse

I/O Hardware Platform CompactRIO

Application Custom NI LabView executable w/ graphical displays, 满足 ISO 16332, SAE J1488 & SAE J1839 procedures

Data Output Output test reports, xlsx files in tables and charts Operating Requirement Items Parameters

Power Supply 480 Vac/3Ph/ 60Hz/25A (International Voltage Available)

Tap-Water 1.0 Lpm @ 400-700 kPa (.

26 gpm @60-100 psig)

Colling Water Customization

Compressed Air 0.14 m3/min @ 550 kPa (5 cfm @ 80 psig), Dry and Oil free

Ventilation Installation 150mm (6") Connect

Environment Temperature 10-40 ℃ (50-104℉)

Noise Output 82 dBA
