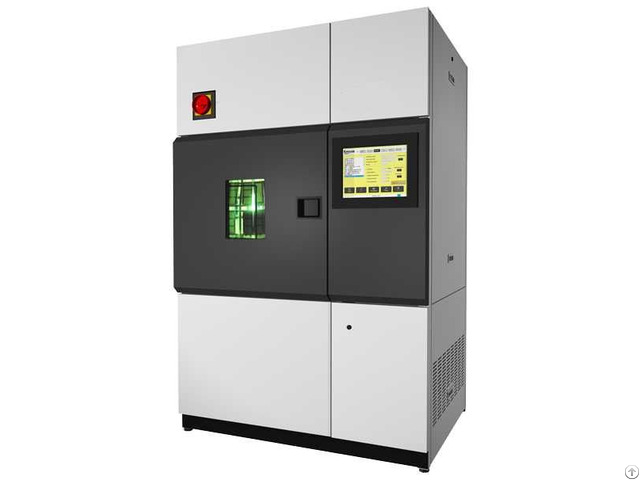

Air Cooled Xenon Lamp Aging Test Machine Product Parameter Standard - China

Air-cooled xenon lamp aging test machine product parameter standard Product parameters:

Temperature range: RT+10℃～70℃

Humidity range: 65%～98%RH

Blackboard temperature: 63℃～100℃

Temperature uniformity: ≤2.0℃ (when it is dark)

Temperature fluctuation: ±0.5℃ (when it is dark)

Humidity deviation: +2, -3% RH

Water nozzle aperture: Ф0.8mm

Rain water pressure: 0.12～0.15Mpa

Rainfall time: 1～999M, continuous rainfall is adjustable

Water spray cycle: 18min/102min or 12min/48min (water spray time/stop spray time)

Illumination period: 1～999h, m, s continuously adjustable

Sample tray size: 450×720mm

Distance between sample holder and lamp: 230～280mm

Wave length: 290～800nm

Radiation intensity: ≤550W/㎡

Xenon lamp power: 2.5KW×3=7.5KW

Heating power: 3.0KW

Humidification power: 2.0KW

Outer box material: high-quality A3 steel plate electrostatic spray

Inner box material: imported high-grade stainless steel SUS304

Temperature and humidity controller: "Taiwan Weilun" touch screen + "German Siemens" PLC module

Temperature and humidity sensor: PT100 platinum resistance thermometer

Standard configuration: 3 tubes, 1 layer of sample rack

Safety protection: compressor overpressure, compressor overload, water shortage protection, fan motor overheating, overall equipment overtemperature, overall equipment under-phase/reverse phase, Overall equipment timing leakage protection, water shortage protection, automatic shutdown after fault alarm, etc.

Power supply voltage: AC380V±10% 50Hz

Work rate: 14.5KW

Use environment: 5℃～＋28℃ ≤85% RH Standards compliant:

AATCC TM16H-1998 TM169, ASTM G151 G155 D6695, ISO 105-B02 105-B04 12040 4892-1, JASO M346, M&S C9 C9A.

Qinsun is a global leading leather&textile testing instruments manufacturer.

Focus on developing and manufacturing leather&textile testing equipment.

Our leather&textile tester is very popular in HK and UK.

In addition, if you purchase our leather&textile testing equipment, we can provide the corresponding pdf manual for free .

Welcome to order.

PS: (WLJCDM809)
