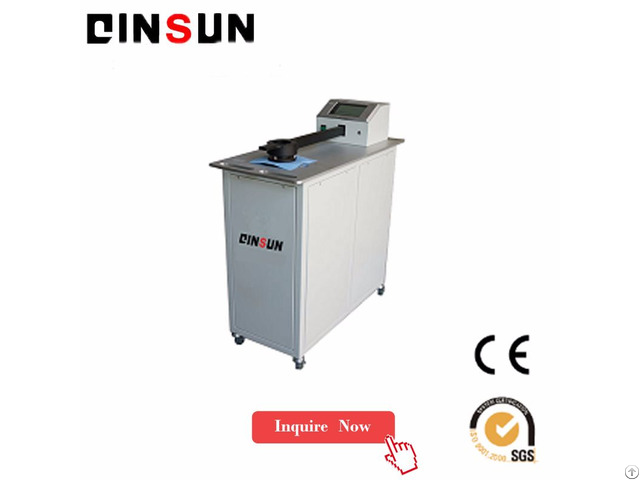

Air Permeability Testing Equipment Of Textile Fabrics - China

The equipment is suitable for outdoor textiles, such as airbags, clothing, parachutes, sails, tents and awnings, etc ; all weather and rainproof fabric; sportswear and functional textiles; weathering material performance assessment; military and industrial use materials permeability Testing; the development and research of air filter materials and vacuum vacuum cleaner bags etc; all kinds of paper products.

Standards GB/T 5453 Textiles--Determination of the permeability of fabrics to air

DIN 53887 Testing of textiles– Determination of air permeability of textile fabrics

ISO 9237 Textiles-Determination of the permeability of fabrics to air

ASTM D737 Standard test method for air permeability of textile fabrics JIS L1096 Testing methods for woven and knitted fabrics

TAPPI T 251 CM-85 Air permeability of porous paper, fabrics, and pulp hand-sheets EDANA 140.2 Air permeability of nonwovens

AFNOR G07-111 Testing of textiles– Determination of air permeability of textile fabrics

BS 5636 Method for determination of permeability of fabrics to air

EN ISO 7231 Polymeric materials, cellular, flexible - Determination of air flow value at constant pressure-drop

ASTM D3574 Standard test methods for flexible cellular materials—Slab, bonded, and molded urethane foams Technical Parameters

Items Parameters

Control mode Software control

Test head area 5cm2, 20cm2, 25cm2, 38cm2, 50cm2, 100cm2 optional

Unit mm/s, cfm, cm3/cm2/s, L/m2/s, L/dm2/min, m2/m2/min, m3/m2/h

Test pressure 0-3000Pa(≤±2%)

Flow test range 0.3-12000mm/s

Testing time 5-50s

Sample thickness range 0-10mm

Seal Up and down double rubber washers

Adhesive sheet airtightness 0.01L/m2/s

Data transmission WIFI(50m)

Power options 220V, 50Hz

Flow calibration Metal flow calibration plate

External Dimension 900mm×590mm×1000mm

Weight 80kg
