Astm D1424 Elmendorf Tearing Strength Tester - China

price: 1.00 Dollar US$

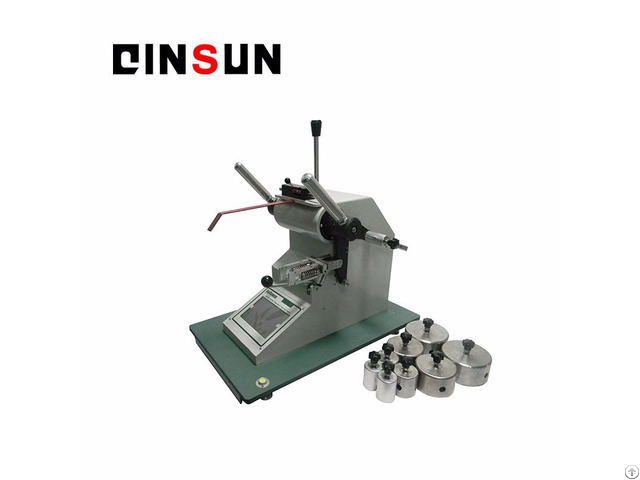

Elmendorf tearing tester is designed to measure average tearing force of materials from the energy loss of a falling pendulum.

By well simulating the practical case, a test specimen is exposed to a sudden heavy load which causes the test specimen to tear, propagating an existing cut, such as a seam or a button hole.

Start from a single tongue-type cut in sample and measure tearing strength from the energy loss of a falling pendulum while the cut propagating, the testing result is considered usable only when in 20 – 80 % of each full scale range, or else next weight should replace.

It is designed to determine tearing force of fabric, non-woven, paper, cardboard, plastic film, etc.

Providing solid results for QC, material R&D, Certification & Testing.

Elmendorf Tearing Tester Standards BS EN ISO 13937 BS EN ISO 4674-2 BS EN ISO 21974 ASTM D1424 ASTM D5734 ASTM D689-96a TAPPI T414 om-12 NEXT 17 DIN EN 21974 DIN EN ISO 1974 DIN EN ISO 6383-2 ISO 9290 M&S P29 NEXT 17 GB/T 3917.1 GB/T 455 Feature Automatic calibration, automatic checking weight and automatic balance the empty pendulum.

Optical encoder measuring system detect swing angle of pendulum can reduce friction and increase accuracy.

Lower energy consumption design.

Wide measuring range reaches 128N.

USB data export makes analysis and data storage more convenient.

Technical Parameters:

A.

Microprocessor control;

B.

According to materials of different thickness, such as fabric, plastic, cardboard, etc., using pendulums with different weight;

C.

Equipped with safety bolt, pendulums installed tools and safety protection device for safety.

D.

Optional various measurement units: MN, CN, N, G, KG, OZ, LB;

E.

The cutting blade with hardening coating, more sharp and durable;

F.

Unique calibration system, guarantee the accuracy of the test for the most.


Company Contact:


  • Phone: +862164200566

  • Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

  • Email: Email


Published date: June 13, 2019

  • Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

    Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

    Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

    We have our own textile testing lab.

    Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

    We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

    We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

    For the laboratory requirements, we also bring forth the new practical test instruments.

    Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
