Automotive Leathers Fogging Testing Equipment - China

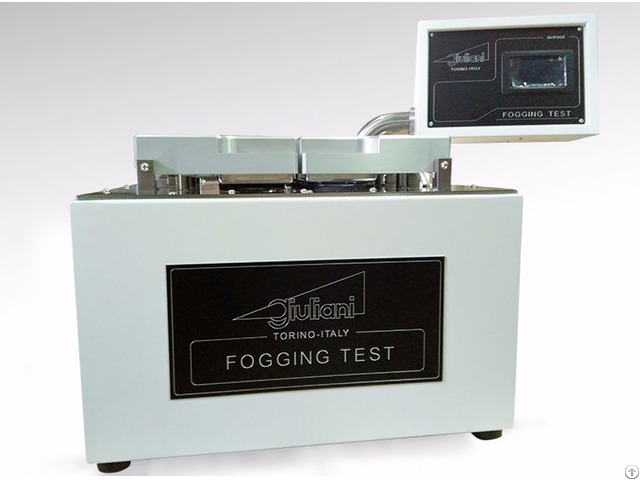

fogging tester isprofessionally designed for the fogging characteristicsevaluation of volatile constituents of decorating materialsused in cars and aircrafts, e.g. plastic articles, polyurethane, textiles, leather, adhesives, nonwovens andthermal forming elastomers at high temperatureconditions.

Applications: Fogging Tester is applicable in fogging test of automotives' interior decoration materials, that will volatilize under higher temperature

Fogging tester can be used to test the fogging of the xenon lights Fogging Tester conforms to standards of: ISO 6452

DIN 75201

SAE J1756 Features: Fit for laboratory running and low noise

Bath temperature control accuracy can reach 0.1 degree Celsius, creating precise testing Conditions

Easy to operate and safe

Worldwide first class components, stable and reliable

Human friendly design

Working Principle:

The main frame of the tester includes a water sink fully filled with specified ethylene glycol, which can reach a high temperature.

At the time of testing, leather specimens are put in the six standard glass containers filled with high temperature liquid, and the stainless steel containers are placed above each glass.

Relying on the constant water flow distribution, the temperature can maintain at 20℃ constantly, and it can be adjusted through the regulation device connected to the main frame.

This controlled environment condition will generate a layer of “fog” on the surface of specimens.

The operator can determine the fogging characteristics of materials based on gravimetric analysis method or refraction method.

Test Methods:

It applies to the following test methods:

1) Gloss Method: the sample cup is heated by the fog evaporated gas condensing on cold glass by glass gloss values were compared before and after condensation and calculated, the sample can be drawn into the fog value.

2) Gravimetric method: the sample cup is heated by the fog evaporated gas condensing on cold aluminum foil, aluminum foil condensed by weighing before and after the change in weight, the sample can be drawn from the atomization - the weight of condensate.

3) Haze method: the sample cup is heated by the fog evaporated gas condensing on cold glass, through the haze value before and after the glass condensate compare and calculate, the sample can be drawn into the fog value.

Technical Parameter:

Hot bath temperature range: room temperature ~ 150 ℃ (room temperature ~ 280 ℃ optional)

High-temperature tank temperature control accuracy: ± 0.1 ℃ (150 ℃)

Low bath temperature range: 0 ~ 100 ℃

Cold tank temperature control accuracy: ± 0.1 ℃

High temperature trough Dimensions: 670 mm (L) × 490 mm (B) × 540 mm (H)

Cryogenic tank Dimensions: 400 mm (L) × 220 mm (B) × 520 mm (H)

Temperature tank Weight: 32kg (not including the thermally conductive medium)

Cryogenic tank Weight: 15kg (not including the thermally conductive medium)

Power: AC 220V 50Hz

Weight: 50kg

Size: 500 * 650 * 600mm

Temperature stability: ± 0.1 ° C (200 ° C)

Heating power: 3KW

Cooling capacity: 500W

Data communication: multi-function remote sensor and USB port

Safety magnetic switch

Warning Light

Test completion tips Consumables:

Glass (square, circle);

Test plate frame;

Nebulizer cup;

Sampler;

Aluminum foil;

Filter paper;

Rubber ring 95 * 4;

DOP;

DIDP;

Silicone oil; Test accessories:

Cooling plate * 6

Flat heat resistant glass beaker * 6

Chrome steel ring * 6

Fluorine rubber seals * 6

Seal ring * 6

Square glass plate * 6 (Reflective test)

Glass plate frame

Aluminum foil

Aluminum foil sampler

Aluminum foil sealed round glass plate * 6

Dioctyl phthalate (DOP) * 1

Diisodecyl phthalate (DIDP) * 1

Φ80mm sampler

Oven

Electronic balance (0.01mg)

Gloss meter

Haze meter
