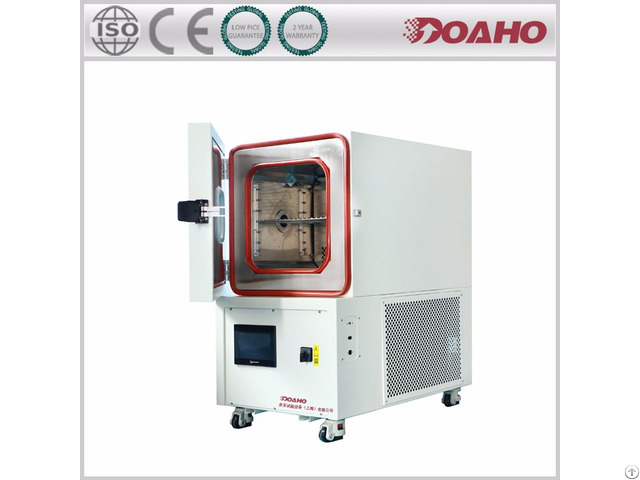

Bench Top Test Chambers - China

Dynamic reasons put your products in a variety of temperatures and humidity environments during manufacturing, transport, storage and use.

Dohao Climate Test Chambers dedicate to simulate deferent environmental conditions, to test the influence of temperature and humidity on the properties, function and lifespan of your products.

Reproducible, certified and under accelerated conditions.

Competitive Edges and Standard Features  80% of best test chambers in terms of quality, and 60% of its price

 Same parameters with the best test chambers  1 years of warranty  Specimen protection against condensation and over-temperature  1 standard entry port (Ø50 mm)  1 shelves  Fault diagnosis system for maintenance and repair  Observation window in door incl.

test space lighting

 Air-cooled refrigeration system  Networking capabilities via RS 232 or TCP/IP(optional)

 Powder-coated housing and stainless steel inner test space

 Intelligent airflow for high accuracies at various loadings  Control system with no temperature hedge, energy saveing

 support for dual 95 test, (TH-Models only)

 suitable for long time stability test  Proprietary psychometric measurement system  Humidity water tank with water level indicator  Automatic water replenishment feature Bench top Temperature & Humidity Test Chamber Technical Specifications Model 　 DHTH-16 DHTH-27 DHTH-37 DHTH-50 DHTH-100

Working Room Volume L 16 27 37 50 100

Temperature Range ℃ 0(-20, -40, -70)/180

Temperature Fluctuation ℃ ±0.3~±1.0 ±0.1~±0.5

Temperature Uniformity ℃ ±0.5~±2.0 ±0.5~±1.5

Heating Rate ℃/min 2.0~3.0

Cooling Rate ℃/min 0.7~1.0

Humidity Range %RH 20~98%

Internal Dimension W mm 310 300 320 350 400

　 D mm 230 300 290 320 500

　 H mm 205 300 400 450 500

External Dimension W mm 465 450 1000 　 　

　 D mm 505 840 780 　 　

　 H mm 625 690 630 　 　

Max Load Kg/㎡ 100

Noise Emissions dB(A) 52 54 55 56 56

Power Voltage 　 220V±10% 50HZ

Rated Power KW 1.0 1.0 1.5 1.8 2.2

Cooling mode 　 air Cooling *All parameters are measured under the ambient temperature of +25 ℃ .

 All the data in line with international standards IEC 60086-3-5。  According to the DIN 45635 standard：The fisrt part precision Grade 2 requirements, measured at a distance of 1 meter in front of the chamber with opening area.

 When the laboratory space is compact, It can provide an optimal solution and the experimental space for the user

 Strong mobility, low noise, wide temperature and humidity range, low electricity
