Bs En 12600 Pendulum Impact Testing Machine For Glass - China
price: 1500.00 Dollar US$
BS EN 12600 Pendulum Impact Testing Machine For Glass
Reference Standard:
BS EN 12600: 2002 Glass in building – Pendulum test – Impact test method and classification for flat glass
Technical Data:

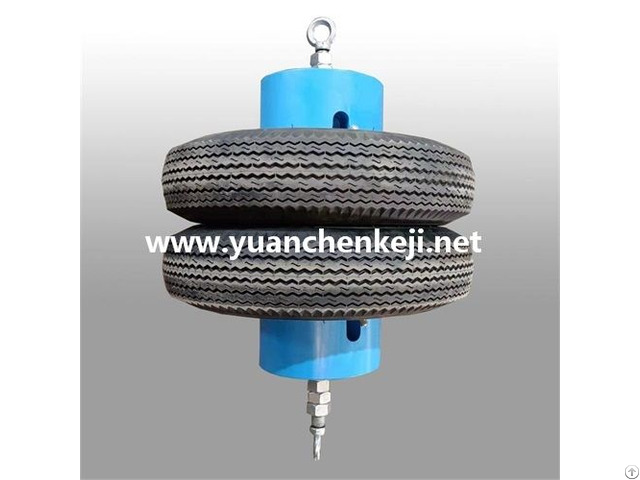

1) Pneumatic Tyres Impactor: Weight: 50 kg ± 0.1 kg Tyre pressure: 0.35Mpa ± 0.02Mpa Tyre type: 3.50-R8 4PR Sample size: 876 mm ± 2 mm * 1938 mm ± 2 mm Inside the sample frame: 847 mm ± 5 mm * 1910 mm ± 5 mm Impact frame footprint: 1300 mm*3900 mm*3700 mm Lifting mode: manual, automatic optional Impact body release mode: manual, automatic optional
2) Impact Testing Frame: Frame Size: 1900mm*1500mm*3570mm Samples Size: 1930mm*864mm Lift: Electric Release: Auto Maximum impact height: 1200mm (customized) Rubber Pad Width: 15mm Rubber Pad Thickness: 3mm Rubber Pad Hardness: Shore A50 Manual type: Manual lifting, manual release, mechanical clamping
Main frame: internal width(847±5)mm internal height(1910±5)mm
Clamping frame: internal width(847±5)mm internal height(1910±5)mm
Rubber strip: (20±2)mm wide, (10±1)mm thick, hardness: (60±5) IRHD
Note: we will provide (20±2)mm wide, (10±1)mm thick, hardness: (60±5) Shore A
Dimension of test pieces: width(876±2)mm, height(1938±2)mm
Drop height: 190mm, 450mm, 1200mm
Company Contact:
- Posted By: Qinhuangdao Yuanchen Hardware Co.,Ltd
- Phone: 863353899615
- Address: Northern Industrial Zone, Haigang District,, Qinhuangdao , Hebei , China
- Email:
- Website: https://www.yuanchenwujin.com
Published date: April 13, 2022
- Business Description: Yuanchen supply nonstandard metal stamping, sheet metal working, sheet metal fabrication, laser cutting service, safety glass testing equipment, metal bracket, sheet metal bending, sheet metal forming etc.
Customized OEM service and Free Sample Confirmed.
Qinhuangdao Yuanchen Hardware Co., Ltd. is special in metal processing and nonstandard metal parts.
