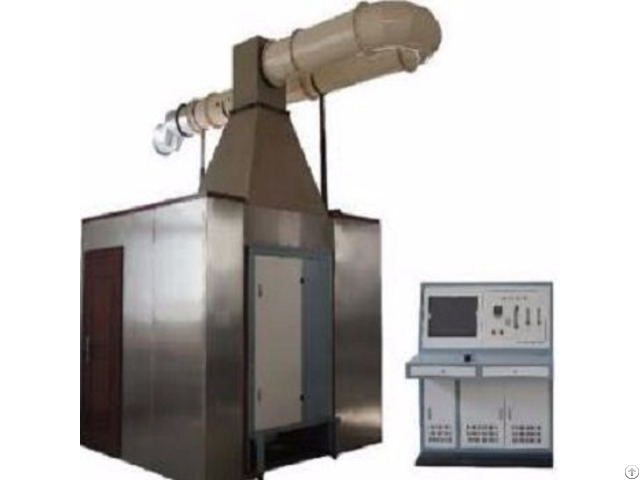

Building Material Monomer Combustion Tester - China

Monomer building materials combustion equipment is used to determine the construction materials or products (not including floor materials and the EC resolution of 2000/147 / EC (it and pointed out that the products) in the monomer (SBI) combustion test fire response performance of the size of test device.

The device USES the computer interface to control the test equipment directly, which greatly saves the manpower and material resources.

Standards: GB 8624-2012 building materials and product combustion performance rating GB/T 20284-2006 "single combustion test for building materials or products" EN 13823: 2002 "building products fire response - single combustion test method for building products without paving materials" Application: This instrument belongs to the building combustion performance grading test instrument.

It can be used to assess the grade of building materials.

Technical parameters: 1 - Combustion laboratory size: 3000mm * 3000mm * 2800mm; 2 - Outline dimensions of the smoke pipe in the combustion chamber: 5200mm * 3000mm * 1800mm; 3 - Control box outline dimension: 800mm * 1200mm * 1500mm; 4 - Smoke extraction speed: 0.50m3/s ~ 0.65m3 /s; 5 - Temperature measurement: imported k-type armored thermocouple with a diameter of 3mm; 6, temperature measurement precision, plus or minus 0.5 ℃; 7 - Accuracy of pressure sensor: 8 - Test time: 1560s; Accuracy of time recording system: 0.1S; 9 - Oxygen analysis (paramagnetism) : range (0-25)%; Response time <12s; Within 30min, the noise drift is no more than 100 x 10-6; The resolution of data collection and output is greater than 100 x 10-6; 10 - Carbon dioxide (IR) measurement temperature: range (0-10)%; The linearity is greater than 1% of the full range; The resolution of data collection and output is greater than 100 x 10-6; 11 - Detector: the color standard accuracy is plus or minus 5%; Output linearity (transmittance)<3%; Absolute penetration rate <1%; 12, test environment temperature (10 ~ 30 ℃; 13 - Control cabinet power supply voltage: AC 220V 50HZ; 14 - Maximum equipment power: 11.5KW; 15, alarm: flue gas pipeline temperature greater than 400 ℃, the alarm; 16, sample adjustment status: temperature (21-25) ℃, humidity (45-55) % RH; 17 - Distance of the test piece from the opposite side: 2100mm.

Environment requirements: Power supply voltage: AC 220V 50HZ safety ground wire; 380V 11KW three-phase power supply safety ground wire; Laboratory temperature (23 + 2) ℃; Laboratory humidity : (40-60)%RH; Test equipment area: 4m x 5.5m by 5m
