Burning Dummy System - China

Burning dummy system Burning dummy and design principle:

The system is mainly composed of a burning dummy, a data acquisition device, a flame generation and control device, a skin heat transfer model and a burn assessment model, and a centralized control and application software platform for the system.

The design principle is to test the surface temperature of the dummy by simulating the thermal exposure process of the wearing human body in the burning flame, and predict the possible second and third degree burns of the skin and the percentage of the total burn area.

The larger the burn area percentage, the greater the wear The flame retardant protection performance is worse.

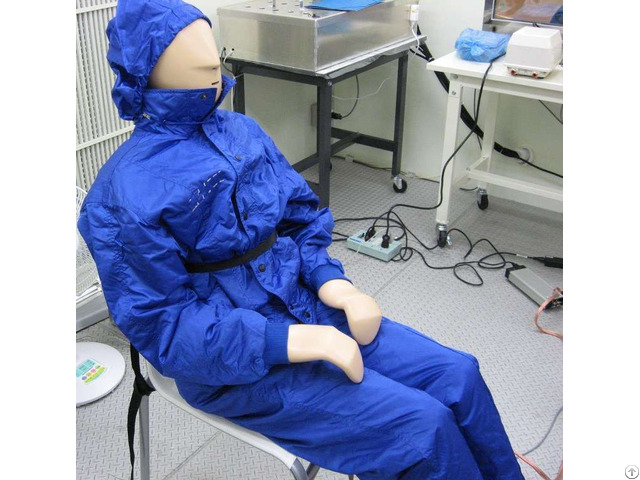

Burning dummy:

The flame duration of the burning dummy body when used for clothing testing is generally 4 s.

The surface of the dummy may need to withstand a burning flame as high as 300 ℃.

Therefore, the material of the dummy body must have a short-term burning flame above 300 ℃.

Good thermal stability, can withstand harsh fire environment; the reaction of the sensor on the surface of the dummy to the burning flame should be close to the reaction of the human skin to the burning flame; the data acquisition and processing device can quickly collect the sensor data of the dummy surface Qinsun Instruments Co., Ltd

PS: (WLJCDM809)
