Cable Route Tracing And Identificator Lfg 50 - Ukraine

price: contact company for price

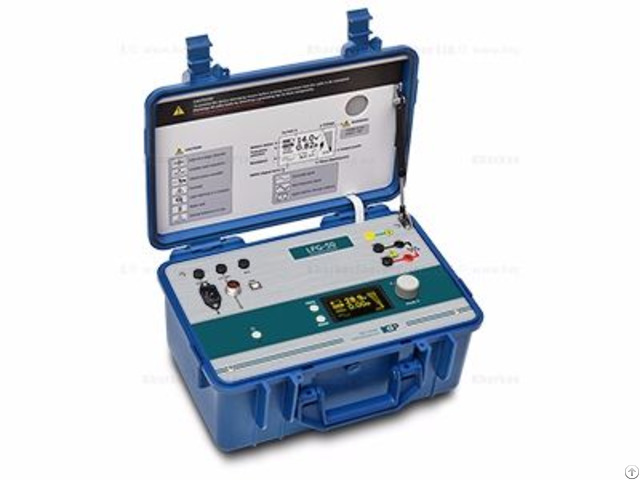

Cable Route Tracing And Identificator Lfg 50

Products Photos Catalog Cable Route Tracing Photos Catalog

LFG-50 Low-Frequency Generator, when operated in conjunction with a receiver, can be used for locating as well as tracing underground metal communications, such as any cables with metal cores as well as metal pipes.

In addition, it provides operator with a quick detection of short circuits on cables as well as with an identification of a cable in a bunch.

LFG-50 is a 50 W low-frequency generator with ability to inject a signal of three frequencies via direct connection to an object or via internal transmission loop antenna, which is built-in a cover lid.

Basic frequencies are 491; 982 and 8440 Hz.

There are options of using a single-frequency or multi-frequency signals at the output.

The power of LFG-50 output signal can be adjusted up to 50 W with 2.5 W steps.

This signal can be transmitted constantly or broken into separate blocks of 50 % duty cycle with 1 s repetition rate.

A load matching is made automatically.

Main parameters, such as output power, load impedance, selected frequency are shown on OLED display.

If a load is higher than 1000 Ω LFG‑50 automatically switches into output voltage setting mode.

The output overload protection will trip, when operating on short-circuit loops (lower than 0.5 Ω).

MAIN FEATURES:

Portable and lightweight

Moistureproof and dustproof case

Advanced LiFePO4 internal battery with fast charging option

High-contrast graphic OLED display

Multifrequency operation

Operating frequencies can be changed upon request

Internal transmission loop antenna

Automatic load impedance matching

Ability to work with energized 0.4kV cables (inductive connection)

Overload protection


Company Contact:


  • Phone: 38 0503237124

  • Address: 61075, Ukraine , Kharkov, 9, Generala Momota Str., Kharkiv , Ukraine

  • Email: Email


Published date: August 18, 2016

  • Business Description: KharkovEnergoPribor Ltd.

    We create high-voltage testing and diagnostic equipment for maintenance of utilities, as well as objects of electrical infrastructure and the energy sector.

    Our service center performs installation, commissioning and maintenance of equipment, trains customer personnel and provides remote technical support.

    The company has a quality management system in accordance with ISO 9001.
