Carpet Tile Thickness Gauge - China

Standards: BS 5920: 1980 (1996), BS 5921 (1996) Applications:

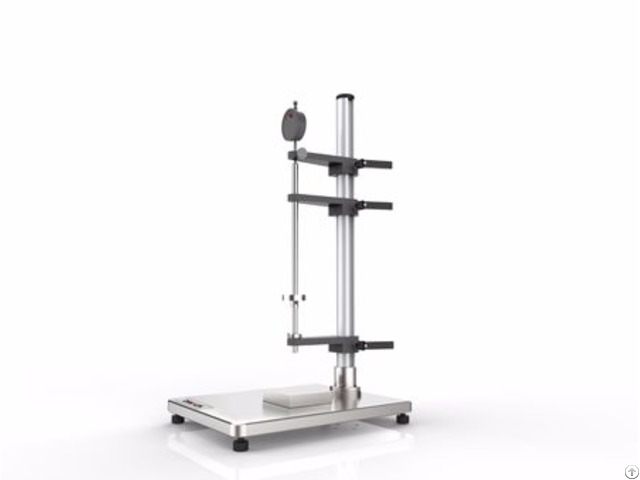

The Carpet Tile Thickness Gauge has been designed to directly measure the total thickness of a carpet tile.

The sample is placed between the two pressure plates, select the suitable pressure accroding to the structure of the sample, then the distance of the two plates could be read on the gauge.

Product Information:

Standard tile sizes of up to 2000mm2 can be testedon this unit.

Additional sizes are available on request.

The tile is mounted on a rigid steel sample plate with raised edge guides, readings are taken at each corner.

An optional data recorder(TTG: DTA) is available, which calculates mean values of readings.

Testing method:

Plate the sample on the fixed lower plate with the usage side upwards and lie flatly.

Slowly down the upper plate with a horseshoe located on its center position until contact with the sample.

The pile thickness can be read directly from the digital gauge after applying a standard pressure for 5s.

Test 5 specimens in each sample unless otherwise specified.

Record the measured value of each specimen with an accuracy of 0.01mm.

Standard Accessories:

Structure of test sample Diameter of upper plate Test area Applied weight Pressure

Solid 8.00 ± 0.05mm 50mm2 0.40±0.02kg 80kpa

Un-solid at least in on layer 25.3 ± 0.1mm 500mm2 0.20±0.02kg 4kpa

Rubber and elastic materials 50.0 ± 0.2mm 2000mm2 5.0±0.1kg 25kpa Composition cork 11.3 ± 0.05mm 100mm2 0.80±0.02kg 80kpa Technical Paremeters:

Thickness gauge: digital;

Weight of horseshoe: 500g;

Lower plate: ≥15cm2;

Upper plate: specifications of 8mm, 11.3mm, 25.3mm, 50.0mm, a set of 4;

Standard weight: specifications of 0.2kg, 0.4 kg, 0.8 kg, 5 kg, a set of 4;

Outside dimensions: 300×400×550mm(L×W×H);

Weight: 20kg.
