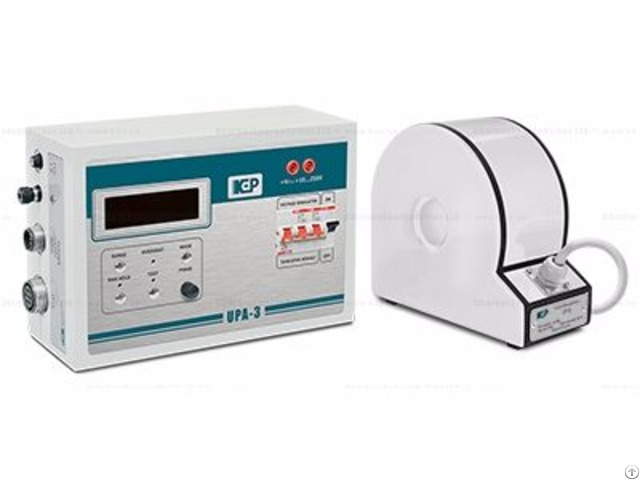

Circuit Breaker Test Set Upa 3 - Ukraine

price: contact company for price

Automatic circuit breaker tester UPA-3 is designed for testing and ampere-second characterization of automatic AC current circuit breakers.

The device allows registering the value of the supplied current and timing the automatic circuit breaker switch interval.

UPA-3 is a mobile device, which could be easily transported to a required testing location.

UPA-3 operates on the principle of varying the power in the primary circuit of the matching power transformer and, respectively, varying the output current, flowing through the automatic circuit breaker under the test.

Power regulation could be done either through an external regulator (RNO or VR) or through a built-in thyristor controller.


Company Contact:


  • Phone: 38 0503237124

  • Address: 61075, Ukraine , Kharkov, 9, Generala Momota Str., Kharkiv , Ukraine

  • Email: Email


Published date: August 18, 2016

  • Business Description: KharkovEnergoPribor Ltd.

    We create high-voltage testing and diagnostic equipment for maintenance of utilities, as well as objects of electrical infrastructure and the energy sector.

    Our service center performs installation, commissioning and maintenance of equipment, trains customer personnel and provides remote technical support.

    The company has a quality management system in accordance with ISO 9001.
