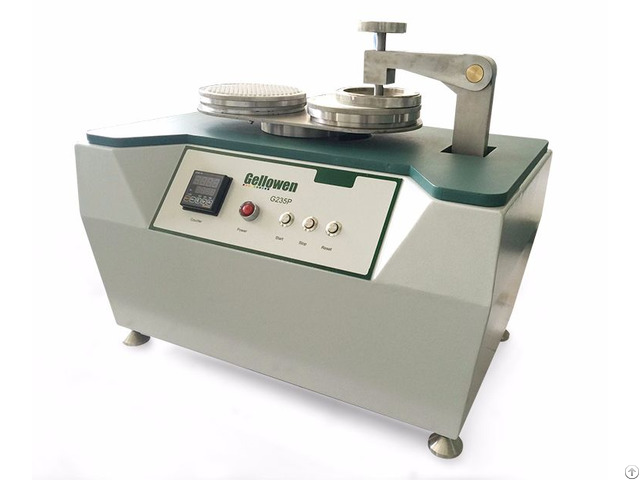

Circular Trajectory Method Locus Pilling Tester - China

The Circular trajectory method Locus Pilling Tester is used to test the pilling conditions of wool fabric, chemical fiber cotton, and blended, knitted, woven fabric to identify product quality and process effect.

When testing, the fabric is rubbed against nylon brush and abrasive, or rubbed against abrasive only in the humidity state.

Standard

GB/T.

1Determination of pilling properties of textile fabrics - Part 1: Circular trajectory method

JIGBell-type gas flow standard device verification procedures

DIN.

2Testing of textiles - Wear test of flat fabrics – Roll to mill Test Parameters

Items Parameters

Grinding head is in contact with grinding plane ≤0.2mm

The parallelism of grinding head and grinding plane ≤0.3mm

The relative movement trajectory of grinding head and grinding plane 40±1mm

Nylon brush surface is flush, its height difference <0.5mm

Grinding plane reciprocating speed 60±1 times/min

Weight of grinding head 490cN±1%

Weight of heavy hammer 290cN±1%

Weight of hammer 100cN±1%

Select the number of times 1~9999 Features

1 - Scientific mechanical structure, smooth rotation, no mechanical noise, no contact fatigue failure, suitable for long continuous operation.

2 - The use of standard nylon brush, the rigidity of nylon wire must be uniform, so as to control the fluff effect of nylon brush.

3 - Ergonomic design, the surface using a spray forming, smooth and beautiful.
