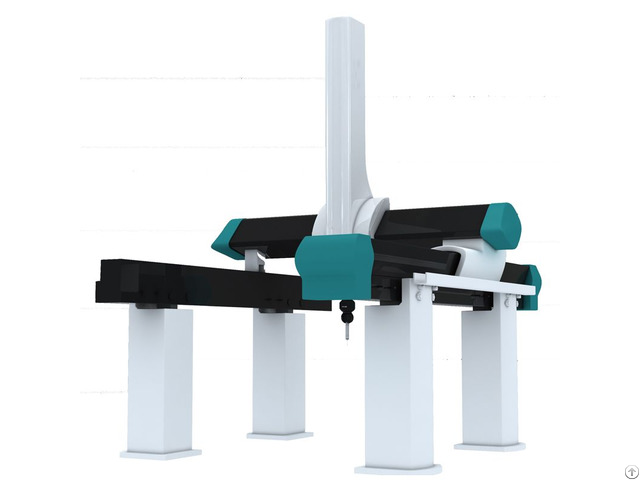

Cmm Coordinate Measuring Machine - China
price: 50000.00 Dollar US$
Characteristics:
1 - Adoption of gantry floor type design makes wide space, which makes it convenient for the workpiece of big size or heavy type to be loaded, measured and unloaded;
2 - Crossbeam’s adoption of TRICISIONTM bridge design principle makes sure of highly accurate location and reliable stability;
3 - Distinctive design of drive and grating scale reduces the machine’s structural errors;
4 - All the anti bumping devices as well as the probe’s anti bumping test improve the security and reliability for measurement;
5 - Adoption of wide range working temperature makes the machine with strong adaptability to the environmental temperature and resistance to effective deformation;
6 - 22 terms of compensation technique as to mechanical geometric errors improve the machine’s precision greatly;
7 - Adoption of the proprietary drive technique makes the higher movement speed available and minimizes the drive inertia.
Application range:
Aerospace, ship, automobile, engine, checking fixture;
Model: CON Series;
MPEE (μm): 3.5+5L/1000~8+5L/1000;
MP EP (μm): 3.5~8.0;
Measuring range (mm) (Dx*Dy*Dz) : (1500~2500)*(2500~6000)* (1200~2000);
Company Contact:
- Posted By: Hyde Science and Technology Limited
- Phone: +86-29-89182431
- Address: Road Tangyan, Xi'an , Shaanxi , China
- Email:
- Website: http://www.globalhaide.com/
Published date: April 26, 2021 - Modified date: April 27, 2021
- Business Description: Hyde Science and Technology Limited, established in 2010,is engaged in studying and developing the climate testing techniques, manufacturing environmental testing equipment, researching and developing management software.
