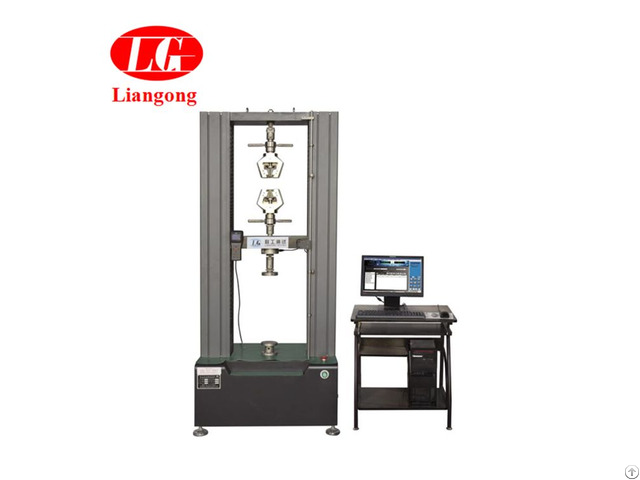

Cmt 20 Computer Control Electronic Universal Testing Machine - China

Application of Equipment This machine is applied in analysis and research of statics property testing of tensile, compression, bending, shearing, peeling, tearing, loading, relaxation, reciprocating and other items of metal and nonmetal material (including composite material).

It can calculate ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm, E and other testing parameters automatically and can do test and provide data according to GB, ISO, DIN, ASTM, JIS domestic and other international standards.

Main technical parameters Measurement Parameters Maximum test force 20kN (can add sensors to extend the force range) Accuracy class 0.5 Measuring range of test force 0.2%~100%FS (full scale) Indicating error of test force Within ±0.5% of indicating value Resolution of test force ±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process Measuring range of deformation 0.2%~100%FS Indicating error of deformation Within ±0.5% of indicating value Resolution of deformation 1/300000 of maximum deformation Indicating error of displacement Within ±0.5% of indicating value Resolution of displacement 0.025μm Control Parameters Adjustable range of force control rate 0.005~5%FS/s Control accuracy of force control rate When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value.

Adjustable range of deformation rate 0.005~5%FS/s Control accuracy of deformation rate When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value.

Adjustable range of displacement rate 0.001~500mm/min Control accuracy of displacement rate When rate is less than 0.05%FS/s, within ±1% of setting value When rate is no less than 0.05%FS/s, within ±0.2% of setting value Other Parameters Effective testing width 440mm Effective distance of tension 610mm (including wedge tensile fixture and can be custom-made according to user’s requirements) Removable distance of beam 970mm Size of host (length x width x height) (820*620*1880)mm Weight of host About 350Kg Power supply Single phase, 220V, 50Hz, 0.75kW
