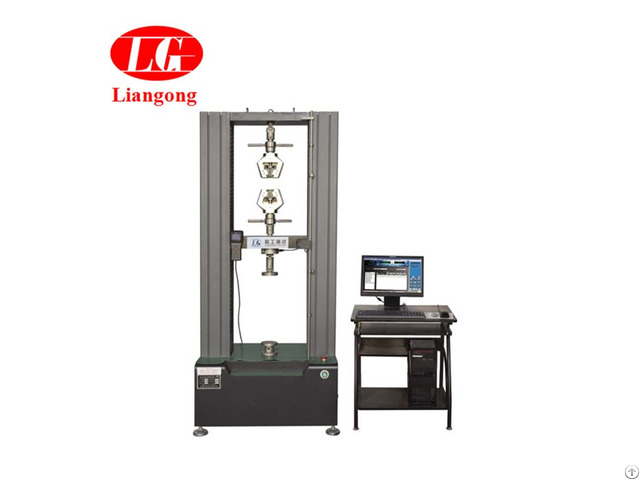

Cmt 30 Computer Control Electronic Universal Testing Machine - China

Main technical parameters Measurement Parameters Maximum test force 30kN (can add sensors to extend the force range) Accuracy class 0.5 Measuring range of test force 0.2%~100%FS (full scale) Indicating error of test force Within ±0.5% of indicating value Resolution of test force ±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process Measuring range of deformation 0.2%~100%FS Indicating error of deformation Within ±0.5% of indicating value Resolution of deformation 1/300000 of maximum deformation Indicating error of displacement Within ±0.5% of indicating value Resolution of displacement 0.025μm Control Parameters Adjustable range of force control rate 0.005~5%FS/s Control accuracy of force control rate When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value.

Adjustable range of deformation rate 0.005~5%FS/s Control accuracy of deformation rate When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value.

Adjustable range of displacement rate 0.001~500mm/min Control accuracy of displacement rate When rate is less than 0.05%FS/s, within ±1% of setting value When rate is no less than 0.05%FS/s, within ±0.2% of setting value Other Parameters Effective testing width 440mm Effective distance of tension 610mm (including wedge tensile fixture and can be custom-made according to user’s requirements) Removable distance of beam 970mm Size of host (length x width x height) (820*620*1880)mm Weight of host About 350Kg Power supply Single phase, 220V, 50Hz, 0.75kW
