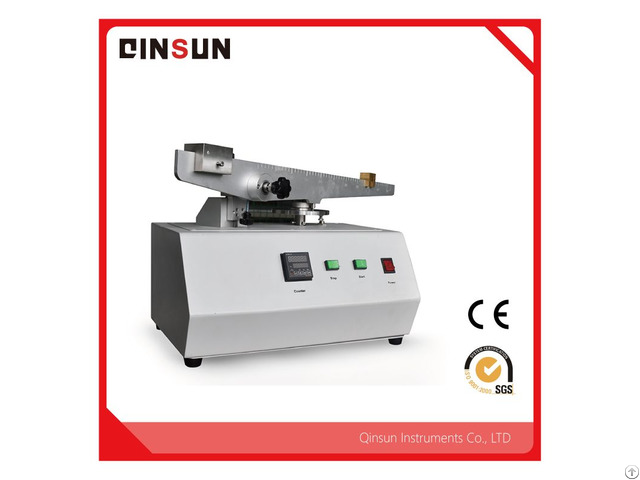

Coatings Hardness Machine Scratch Tester For Bmw Test Standards - China

price: 1.00 Dollar US$

Taber's Shear/Scratch Tester can be used to study resistance to scratching, gouging, shearing, marring, scraping and engraving on a range of rigid flat specimens.

It may also be used to test the homogeneity of materials, the adhesive qualities of protective coatings and the impact of age on similar materials.

it is used for a variety of automotive interior materials, such as plastics, rubber, leather, fabric, coating materials, coating materials and other non-composite materials such as scratch resistance detection.

Scratch/Shear Tester from Qinsunlab can be used to characterize film-substrate systems and to quantify parameters such as adhesive strength and friction force and using a variety of complementary methods.

This makes them invaluable tools for determining coating adhesion, scratch resistance and mar resistance in research, development and quality control.

Scratch tester is applicable to all types of wiping performance test of automotive interior materials; test equipment integrated three domestic standards (fingers scraping method, a hundred grid method, and plastic scraping finger scraping method).

This adjustment allows the scale beam to be maintained in a level position in respect to the specimen and turntable.

Designed with an integrated bearing, the scale beam can be tilted in a rest position enabling the operator to mount or remove specimens.

Applicable Standards:

GB/T 2918, GB/T 6151, GB/T 8424.3, PV3952, BMW GS97034-2, BMW GS97034-9, GMN 3943-2003, FLTM BN 108-13, STD1024-3113, GMW 14698-A, GMW 14688 Technical Parameters:

1 - Maximum test pressure: 5N

2 - specimen Rotate speed: 5 ± 1r / min

3 - Test force accuracy: ± 2%

4 - specimen Maximum size: Φ90 ~ Φ100mm

5 - Overall dimensions: 120 × 120 × 480mm

6 - Weight: 15kg Operation process:

Before loading the sample, you need to adjust the Weighing bar to the appropriate height firstly according to the sample thickness.

The precision cutting tool is installed on the Weighing bar and placed on the sample.

After the start of the instrument, turntable was rotated at constant speed to ensure accurate measurement results .

By changing the load on the cutting tool, you can evaluate the shear resistant or scratch resistant performance of the material.

The instrument's Weighing pole design allows it to level with the sample and turntable, and can be raised or lowered according to the actual needs.

In addition, the Weighing pole can also be lifted in the air to facilitate the operator to remove the sample.

By changing the position of the sliding balancing weight, the total load on the sample can be adjusted in the range of 0-1000 g.

Cutting tools can be chosen using tungsten carbide tools or circle conical diamond head.

Visually judging the test results with the randomly equipped 10 times magnifier, the user can also use high-precision optical microscope to observe.

Specifications:

1 - The travel range: 10-200mm;

2 - Speed range: 10-200mm / s;

3 - Speed Buffer: 10 ± 1mm


Company Contact:


  • Phone: +862164200566

  • Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

  • Email: Email


Published date: September 6, 2019

  • Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

    Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

    Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

    We have our own textile testing lab.

    Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

    We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

    We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

    For the laboratory requirements, we also bring forth the new practical test instruments.

    Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
