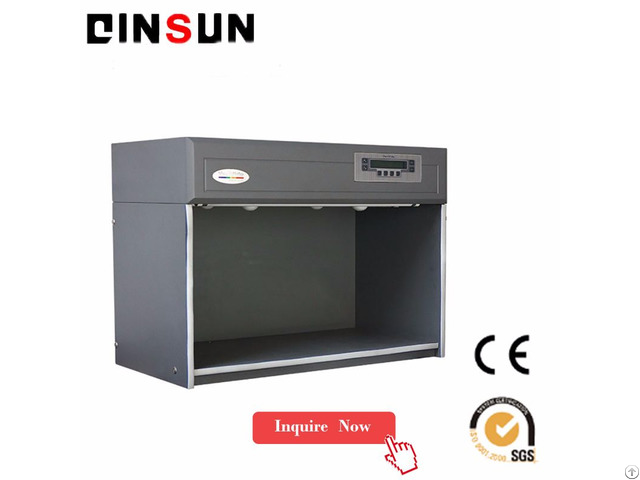

Color Light Box Testing Instruments - China

The Qinsun Color Assessment Cabinet can accommodate up to 4 light sources.

The light sources can be specified by you, to meet your own specific needs and requirements.

A typical cabinet includes UV and F with a choice of two other light sources - usually D65 and one 'point of sale' light source such as 840, 830 or Cool White.

If required, A or H can be supplied instead of F.

You can stipulate the voltage you require and can also ask for the cabinet to be fitted with a Diffuser and or Dimmers(dependent upon lamp options you select).

The cabinets are normally supplied painted with a neutral matt grey -Munsell N5, but it can also be supplied with alternatives of paint colours, Munsell N7or Ref G5574 if required to comply with a particular customer specification.

Technical Parameters:

Overall dimension: 420mm*710mm*545mm(L×W×H )

Viewing area dimension: 380mm × 680mm × 335mm(L×W×H)

Weight: 25kg

Power: 220V/50Hz

Light source: 1 - D65--Artificial Daylight, Color temperature: 6500K, Power: 18W

2 - TL84/P15--Europe, Japan, China store light source, Color temperature: 4000K, Power: 18W

3 - A--Incandescent lamp, household light source, Color temperature: 2856K, Power: 35W

4 - H--Tungsten halogen lamp, household light source, Color temperature: 2300K, Power: 75W

5 - UV--Ultra-Violet, Color temperature: 3000K, Power: 18W Optional Configuration:

We also have a selection of accessories specifically designed for our CAC cabinet range including Benches, Workstations and Cupboards.

Tables, both Tilting and Fixed Angle, are also available.
