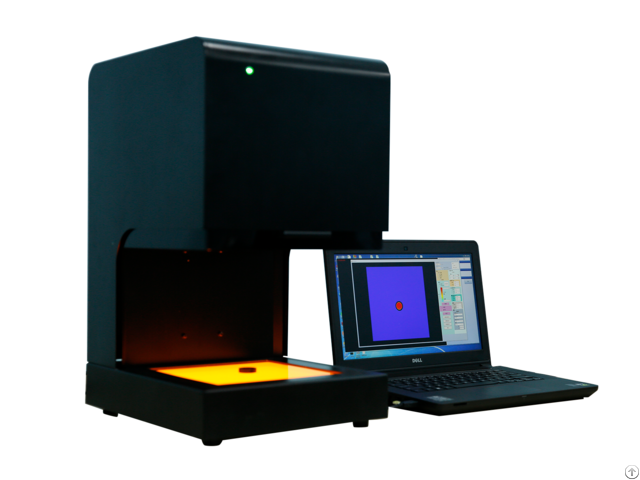

Computerized Polariscope Online Stress Analysis - China
price: 35000.00 Dollar US$
During one measurement, this full-auto Polariscope can take images at a specialized angle, and simultaneously obtain the stress size and slow axis direction of all sample areas in the viewing field and output the three-dimensional stress distribution.
Features 1 - One-key automatic stress measurement within the whole viewing field ;
2 - The axial direction of the stress at each point can be displayed together with the internal stress value, which is convenient for stress type analysis;
3 - The result is displayed in 3D mode, which visually displays the stress level of each point;
4 - Use background light calibration to eliminate environmental errors; Specification Overall size: 363*285*490mm
Weight: 16kg
Measurement area size: 175*175mm
Measuring space height: 0~150mm
Detection method: rotating analyzer method
Setting wavelength: 590nm
Retardation range: 0-145nm
Repeated measurement accuracy: 1nm
Effective pixels: 1100*1100
Company Contact:
- Posted By: Suzhou PTC Optical Instrument
- Phone: 8618913228862
- Address: NO. 189 , Zhangji Road , Eocnomic Development Zone, Kunshan , China (Mainland), China
- Email:
- Website: https://www.ptc-stress.com/
Published date: February 5, 2021
- Business Description: Technology-leading Stress Measurement
PTC specializes in optical inspection and stress measurement solutions , involving glass, plastic, optical film, flat panel display, PCB and more industries.
After years of research and practice, we have successfully developed
well received products, such as Surface Stress Meter, Polariscope and AOI machine.
