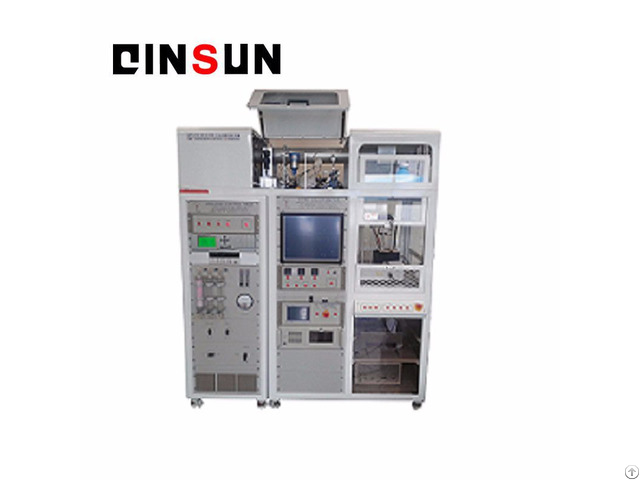

Cone Calorimeter Complies With Iso5660 - China

A cone calorimeter is a fire test apparatus based on the amount of heat released during the combustion process, which is directly related to the oxygen consumption in the combustion process.

The amount of heat generated is directly proportional to the severity of the fire, such as the rate of fire growth.

In order to obtain the flammability of the material, the material is exposed to an external radiation heat source.

Therefore, since this is a forced combustion test, the cone value is generally considered to reflect the second ignitability of the ignition.

Standard：

ISO5660, ASTM E 1354, ASTM E 1474, ASTM E 1740, ASTM F 1550, ASTM D 6113, NFPA 264, CAN ULC 135, BS 476 Scope of application:

The Cone Calorimeter is the most significant bench scale instrument in the field of fire testing.

Test Principle:

A sample is placed in a "cone" shaped radiant heater.

Normally, the sample is exposed to 35 kW / m2 of external flux-forming heaters.

However, for more refractories the heater is often increased to 50 kW / m2 - Once sufficient pyrolysis products are produced, ignition occurs.

Combustion products pass through a conical heater and through an instrument discharge tube.

The measured / calculated values are usually important including, but not limited to, the maximum ignition time, the mass loss rate during combustion, the maximum amount of time and heat released during combustion, the total amount released during the test.

Company Contact:

• Posted By: Qinsun Instruments (Shanghai) Co., Ltd.

• Phone: +862164200566

• Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

  We have our own textile testing lab.

  Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

  We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

  We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

  For the laboratory requirements, we also bring forth the new practical test instruments.

  Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
