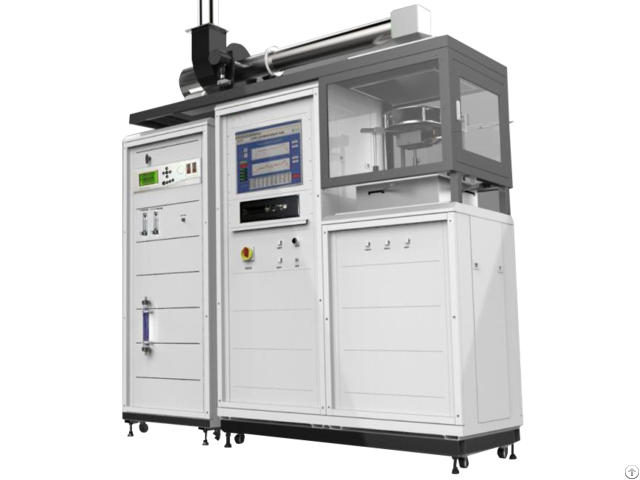

Cone Calorimeter - China

A cone calorimeter is a fire test apparatus based on the amount of heat released during the combustion process, which is directly related to the oxygen consumption in the combustion process.

The amount of heat generated is directly proportional to the severity of the fire, such as the rate of fire growth.

In order to obtain the flammability of the material, the material is exposed to an external radiation heat source.

Therefore, since this is a forced combustion test, the cone value is generally considered to reflect the second ignitability of the ignition.

Standard：

ISO5660, ASTM E 1354, ASTM E 1474, ASTM E 1740, ASTM F 1550, ASTM D 6113, NFPA 264, CAN ULC 135, BS 476 Scope of application:

The Cone Calorimeter is the most significant bench scale instrument in the field of fire testing.

Feature:

1).

Displays the instrument status.

2).

Calibrate the instrument and store the calibration results.

3).

Collect the test data.

4).

Calculate the required parameters.

5) Display the results by the standard way.

6).

Multiple tests are averaged.

7).

Data entry to FDMS (Fire Data Management System) - Most European and US laboratories apply the system format, sharing data between different laboratory calorimeters.

8).

the file output is in CSV (Comma Separated File) format, which can be quickly converted to a spreadsheet　 Optional Configuration：

1, Carbon dioxide and carbon monoxide - available NDIR gas analyzer.

2, Hydrogen chloride - heating supply lines and gas analyzers.

3, Controlled gas accessories - for low-oxygen sample analysis.

4, the quality of the loss of calorimeter.

5, FTIR toxicity tester.

6, the protection of door-to protect the operator does not inhale poisonous samples generated by the flue gas.

The steel plate blocks the rear, the exhaust hood blocks the top, and the test door blocks the bottom, protecting the door against the last side.
