Corner Cube Prism - China

price: contact company for price

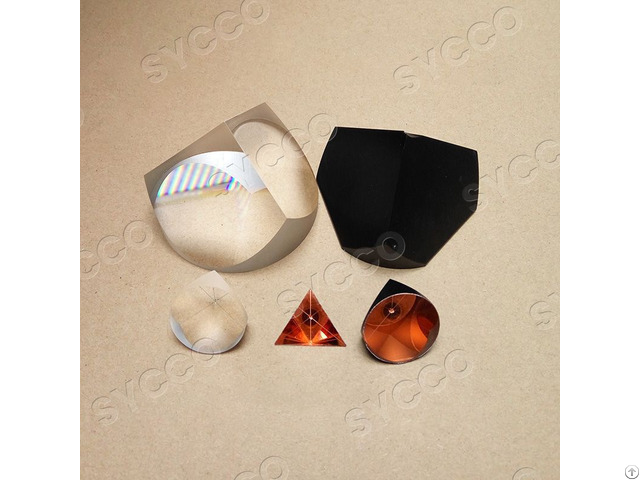

Corner Cube Prism

Products Photos Catalog Corner Cube Prism Photos Catalog

Corner Cube prism has three mutually perpendicular surfaces and a hypotenuse face.

It operates on the principle of total internal reflection(TIR).

A beam entering the effective aperture is reflected by the three roof surfaces and emerges from the entrance/exit surface parallel to itself.

This property is independent of direction of the retro-reflector, within acceptance angle limitations.

For applications in which either the acceptance angle for TIR is exceeded, or the reflecting surfaces can not be kept sufficiently clean for TIR, a metal or dielectric coating can be applied to the reflecting surfaces.

Specifications:

Attribute Specification

Material: BK7 Glass

Dimension Tolerance: +0.0/-0.2mm

Deviation: 180°±3 arc second

Flatness: -λ/4 on big surface, λ /10 on other surfaces

Clear Aperture: >80%

Surface Quality: 60/40(General), 10/5(High Precision)

Bevel: 0.1-0.5

Coating: Uncoated


Company Contact:


  • Phone: +86 635 2952 888

  • Address: North-South 1st Road, Xiangguang Economic Development Zone, Yanggu, Liaocheng , Shandong , China

  • Email: Email


Published date: September 3, 2024

  • Business Description: Shandong Yanggu Constant Crystal Optics,Inc was established in April 2006, located in Xiangguang economic development zone, Yanggu County,Shandong Province.

    We are specialized in researching, producing and saling optics and optical components.

    Our main products include optical window,prism, lens, beamsplitter, filter, wedge, blanks and etc.

    We also provide customized service according to customers requests.
