Csl A Impact Specimen Notch Manual Broaching Machine - China

price: 1800.00 Dollar US$

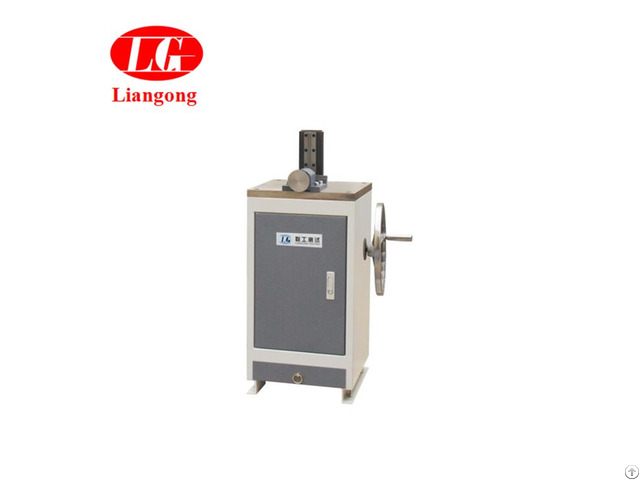

Csl A Impact Specimen Notch Manual Broaching Machine

Products Photos Catalog Csl Impact Specimen Photos Catalog

Product description The impact sample notch broaching machine is the only device that can process the notch of the qualified Charpy impact sample except for the optical curve grinder in the country.

The machine adopts the processing principle of one-time forming, and the machined notch has excellent uniformity.

This equipment is a necessary special equipment for metallurgy, boiler pressure vessels, vehicles, engineering machinery manufacturing and scientific research institutions and other departments.

Working principle The broaching machine adopts gear rack transmission, and manually rotates the handwheel to rise and fall the broach, thereby broaching the notch.

This product is equipped with one broach, optional broach model: V type (deep 2mm) or U type (deep 2mm), you can also buy two broaches, tool change is simple and quick, no complicated steps, operation reliable.

The broach of the broaching machine is made of W18Cr4V material with high hardness and good wear resistance.

Each cutter can process more than 20, 000 samples.

Technical Parameters Model CSL-A Specimen gap shape V-or U-(2mm) Processing the Specimen size 10*10(7.5 or 5)*55mm Cutting mode Manual control Broach stroke 350mm Broach Materials W18Cr4V Power no electricity Dimensions (mm) About 430*400*770mm Weight About 100Kg Working condition: 1 - Room temperature 20°C±5°C 2 - Relative humidity less than 85% 3 - Surrounding environment is non-corrosive medium, no vibration, no strong electromagnetic interference .


Company Contact:


  • Phone: +86 18854162067

  • Address: Room 605, Fortune Times Square,Jingshi Road, Huaiyin District, Jinan , Shandong , China

  • Email: Email


Published date: November 11, 2021

  • Business Description: Our factory is the professional manufacturer in the Chinese Material Physical Testing Machine Industry, which include the UTM and TTM series, Impact Test series, Compression Test series, Cupping Tester series, Hardness Tester and Metallographic products, etc.
