Double Ended Pogo Pin Test Probe Scfb029 40 For Chip Inspection - Hong Kong
price: contact company for price
Double-Ended Pogo Pin Test Probe SCFB029 (40) for Chip Inspection Its parameters are as below.
Materials (plated)
Barrel: Ph, Au on Ni Plated
Bottom Plunger: BeCu, Au on Ni Plated
Top Plunger: SK4, Au on Ni Plated
Spring: SWP-A/B, Au on Ni Plated Electronic Specification:
Current Rating: 2 amps
Contact Resistance: 100 milliohms max
Bandwidth: 8.5 GHz at -1dB
Inductive Reactance: 1MHZ at -0.02661uH
Capacitive Reactance: 1MHZ at 0.925374uF Specifications:
Full Stroke: 1 mm
Rated Stroke: 0.65 mm
Spring Force: 14±4 gf at load 0.65 mm

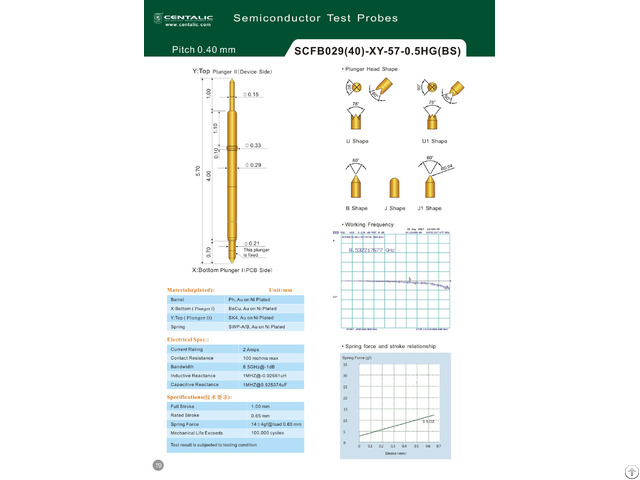

Mechanical Life: about 100000 cycles For more information, please check below catalog.
Semiconductor test probes are usually called double-ended pogo pins.
Common tip styles include B, J, J1, U, U1, etc.
All of the probes are extremely thin and miniature, however, the requirement for their test accuracy is very strict.
They are mainly applied to the fields of semiconductor tests and frequency tests of communication devices, for example, the frequency tests of mobile phones, walkie-talkies, computers, etc.
SCPB029(40) is unique in shape among semiconductor test probes due to a convex ring at one end of its barrel.
Only the top plunger, which contacts the device under test, is movable.
The bottom plunger, which contacts PCB, is fixed owing to the concave ring.
This double-ended pogo pin can be applied to the tests of products which requires relatively high accuracy, for example frequency tests of semiconductor and communication devices.
Developed and manufactured on our own, this product takes the lead in the test industry.
Our complete production lines can also meet the needs for mass production.
Company Information:
Centalic Technology Development Ltd. was founded in 1980 - Specializing in R&D, manufacture, sales and technical service, Centalic is one of the earliest high-tech enterprises which concentrates on large-scale production of various test probes and precision metal parts, and has a professional manufacturing base owning complete production lines and test equipment.
Our products include semiconductor test probes, in-circuit test probes, radio frequency probes, harness probes, battery contact probes, switching probes, big-current probes, spring probes, universal complex test probes, wafer probes, and so on.
They are widely applied to the tests of various electronic products, such as in-circuit tests of semiconductor components, chips, PCB and other electronic peripherals.
Our company owns professional R&D, production, sales teams under the working principle of 'quality, punctuality, confidentiality' to totally efficiently develop test probes in accordance with the requirements of customers' test projects and meet the needs of customers for mass production as well as developing markets.
With many years' continuous endeavour of our staff, Centalic has built a solid foundation in this industry and our products have been sold all over the world.
Welcome to browse our website and download any catalogs of our products.
If you need a complete set of product manual, please feel free to contact us.
Many products are not uploaded due to a huge range.
If you can't find what you need, please feel free to contact us.
