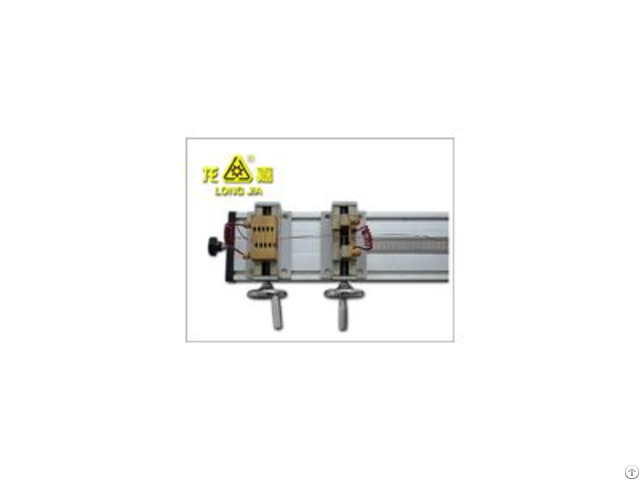

Dq 630 Type Four Terminal Wiring Clamp - China

I.

Overview

DQ-630 type universal conductor resistance clamp is the auxiliary equipment for measuring the DC resistance of wire and cable conductors, which can be used together with QJ36, QJ57, SB2230, PC36C and other double bridge and digital bridges to measure conductor resistance.

It meets the standard requirements given in GB/T3048 Test Method for Electrical Performance.

The baseplate is made of aluminum alloy section, and is provided with independent clamping head on current end and voltage test end.

The current-end clamping end may be used to adjust the distance with the test end (voltage clamping head) according to the sectional area of the conductor measured.

In addition, its performance indicators and technical parameters comply with the requirements of relevant national standards.

II.

Main technical parameters

Current-end shape: Right-angle jaw shape

Voltage-end shape: Right-angle knife shape

Contact width of clamp：45mm

Space between current and voltage ends: Adjustable range

Length of measurement wire：1000mm

Maximum cross section of the sample ：630 mm²
