Electro Hydraulic Servo Universal Testing Machine - China

price: 15000.00 Dollar US$

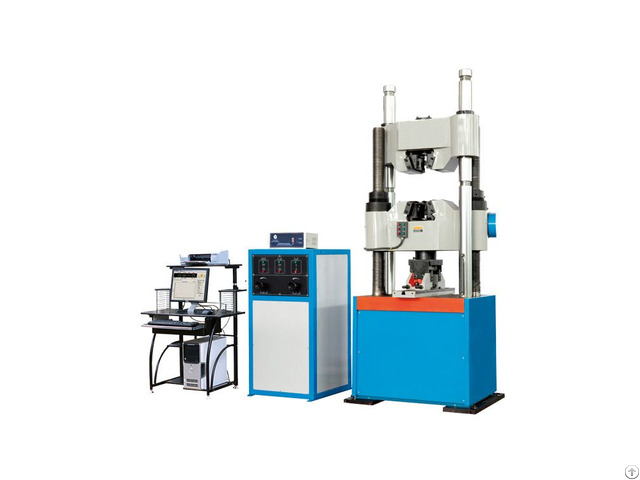

Electro Hydraulic Servo Universal Testing Machine

Products Photos Catalog Electro Hydraulic Photos Catalog

Model: XBX-1000;

Max.

test force (KN): 1000;

Range of test force: 2%~10%FS, Four subsection 1, 2, 5, 10;

Relative error of indicating value: Better than ±1% of indicating value;

Resolution of displacement measurement (mm): 0.01;

Accuracy of deformation measurement: ±0.5%FS;

Control range of stress velocity: 1MP/S-60MP/S

Adjustable range of strain velocity: 0.00025/S-0.0025/S;

Control range of displacement velocity: 0.5mm/min-50mm/min;

Clamping diameter of round specimen (mm): φ13-φ60;

Clamping thickness of flat specimen (mm): 0-40;

Clamping width of flat specimen (mm): 120;

Test space (mm): Tensile test: 650; Compression test: 600;

Upper and lower compression plate size (mm): 210×210;

Roller distance of bending fixture (mm): 30-800;

Max piston stroke (mm): 250;

Power supply: 380V±10%, 50Hz;


Company Contact:


  • Phone: +86-29-89182431

  • Address: Road Tangyan, Xi'an , Shaanxi , China

  • Email: Email


Published date: April 26, 2021

  • Business Description: Hyde Science and Technology Limited, established in 2010,is engaged in studying and developing the climate testing techniques, manufacturing environmental testing equipment, researching and developing management software.
