Electronic Circular Locus Tester For Determining The Pilling And Fuzzing - China

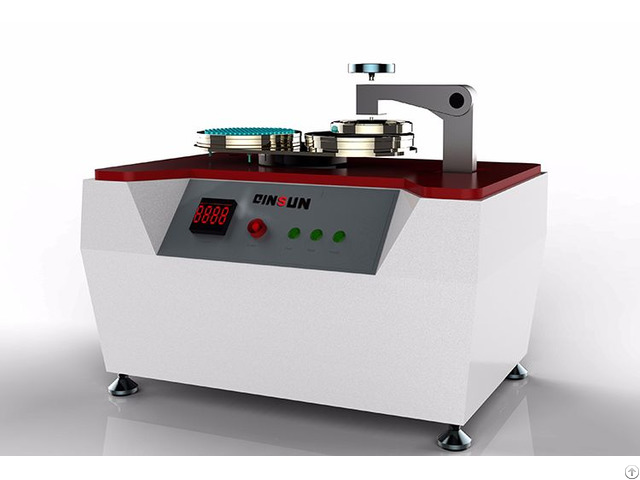

electronic circular locus tester for determining the pilling and fuzzing

is used for determining the pilling and fuzzing of all kinds of fabrics to evaluable the product quality and process, such as wool, chemical fiber, mixed, kitted and woven fabrics.

During the test, fabric is rubbed against a nylon brush and abrasive, or only against an abrasive under controlled conditions.

Testing Standards:

GB/T 4802.1, JIG 040-1990 Technical Parameters:

1 - Contact gap between abrasive assembly and abrasive platform: ≤0.2mm;

2 - Parallelism of grinding head and grind plane: ≤0.3mm;

3 - Moving locus: ￠40mm circle track moving;

4 - Nylon brush with paralleled surface, the altitude difference: ＜0.5mm;

5 - Reciprocating speed of abrasive platform: 60±1r/min;

6 - Weight of grinding head: 490cN±1%;

7 - Weight of larger loading weight/pieces: 290cN±1%;

8 - Weight of little loading weight/pieces: 100cN±1%;

9 - Times of options: 1～9999;

10 - Meet the requirements of standard tests.
