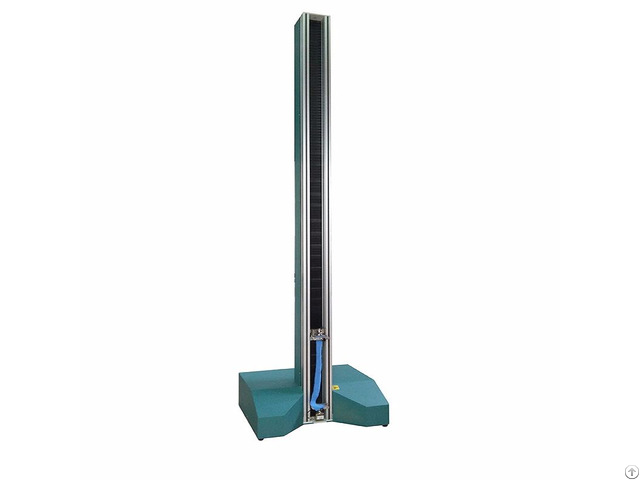

Electronic Multifunction Socks Stretcher - China

qinsun Electronic Multifunction Socks stretcher is mainly used to determine the straight extension and transverse extension of stockings, swimwear, pantyhose, belly and knitted pants.

Standards compliant: FZ / T 70006, FZ / T 73001, FZ / T 73011, FZ / T 73013, FZ / T 73029, FZ / T 73030 The main parameters:

1 - Tensile speed: 20mm / s-250mm / s Promise adjustable;

2 - Test movement: 100-3000mm; (can be customized to increase to 3400mm);

3 - Rated tension, 0.1N-200N adjustable range, the test tensile force can be set according to the actual test requirements;

4 - Side set LCD controller, set the tensile speed, rated tension, stretch holding time and other test conditions parameters, real-time display test test results;

5 - Configuration pre-tensioning weight, manual fixture;

6 - Test can be completed to test the sample elongation;

7 - Structure size: 1000mm *700mm*3500mm;

8 - Weight: 120kg.

Electronic Multifunction Socks stretcher main features:

1, the control panel location of about 100cm high, ergonomic and practical needs, easy to operate;

2, vertical stretching structure, easy to sample installation and testing;

3, vertical vertical structure, horizontal footprint is small;

4, Siemens PLC control system, precise control, stable and reliable.

Electronic Multifunction Socks stretcher performance characteristics:

The instrument has built-in constant tensile test mode, fixed tensile tensile test mode, satisfying different test requirements such as fixed elongation force, constant elongation rate and constant timing elongation.

The system has a built-in force elongation,, Elastic recovery, plastic deformation and other test options to facilitate the user to choose the test method.
