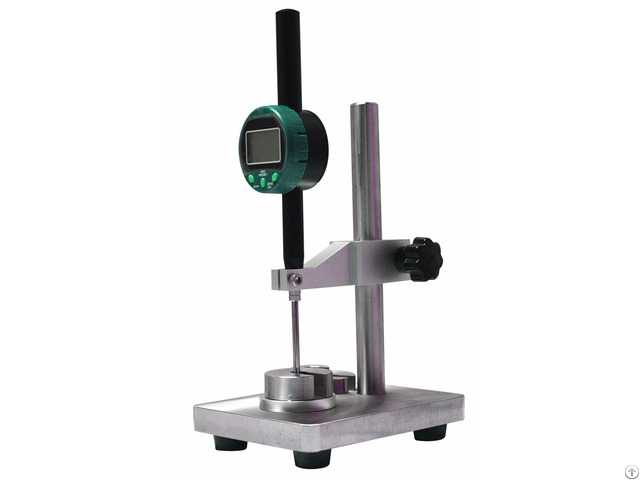

Electronic Textile Fabric Thickness Gauge - China

digital fabric thickness tester is designed to accommodate testing to ASTM D1777, option 1, with pressure foot of 1.129” diameter under a load of 0.6 Psi, digital display of thickness up to 1” or 25mm.

Can also be used as a digital foam thickness tester.

Testing Standards:

JIS L1096/L1018, GB/T 3820, ISO 5084 Applications:

Fabric Thickness Gauge is an apparatus to measure the thickness of fabric, knitwear, film, rubber, soft urethane form.

Product Information:

Fabric Thickness Gauge has a complete assortment of the pressure-foot and weights to conform the different test-methods.

As Analogue type is suitable for general textile and floor carpets mainly, digital type is suitable for pile fabric and knitted cloth.

The other pressure foot area and weight for special purpose can be manufactured as the user's requirements.

Technical Parameters of Fabric Thickness Gauge:

1 - Measuring capacity (Standard-type): 0～10mm

2 - Min.

reading: 0.01mm

3 - Area of pressure (Standard-type): 20cm2(φ: 50.5±0.01mm)

4 - Measuring pressure: 0.3kPa (3gf/cm2), 0.7kPa (7gf/cm2), 1.0kPa (10.2gf/cm2)

5 - Access.

weight: 80g (for 0.7kPa), 144g (for 1.0kPa)

6 - Dimensions (approx.

): W120×D150×H200mm
