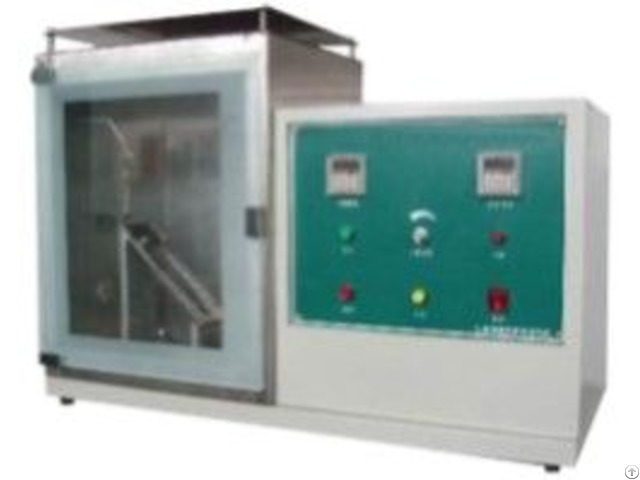

Fabric Flame Retardant Tester - China

The instrument is used to measure the intensity and speed of burning of flammable textiles when ignited.

Standards GB/T 14644-2014 Textiles-Burning behaviour-45°test determination of flame spread rate

CFR 1610 Standard for the flammability of clothing textiles Technical Parameters Items Parameters

Burning time range 0 ~ 99.99s; resolution: 0.01s

Ignition time 1s, resolution: 0.01s

Igniter Caliber 41/2 syringe needle

Sample size 150mm × 50mm

Sample clip size Shape -205mm × 76mm; inner frame -130mm × 40mm

The tip of the igniter is 8 mm from the specimen surface

Flame spray the sample from the midpoint to the mark line distance 127mm

Flame height 16mm
