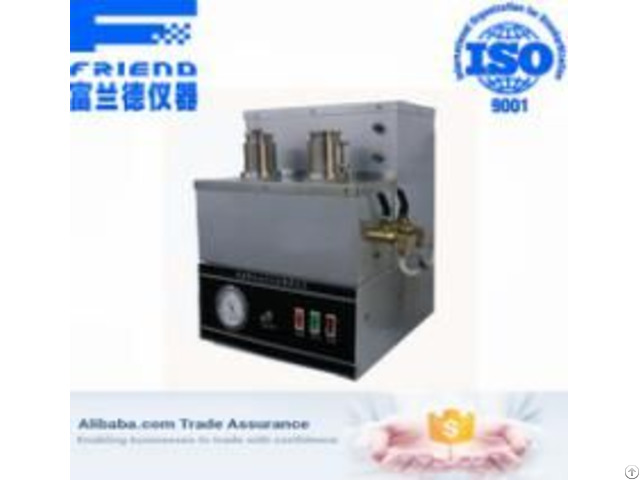

Fdr 1431 Total Precipitate Residual Fuel Oil Tester - China

Scope

Total precipitate residual fuel oil tester, according to SH / T0701 and SH / T0702 "residual fuel oil precipitate total assay (aging, hot filtration)" standard design and manufacturing.

This method is applicable to the determination of 100 ℃ viscosity of less than 55mm2 / s of residual fuel oil and residue containing components reconciling get distillate fuel oil in total deposits.

Features

1, the Petrochemical SH / T0701 and SH / T0702 two instruments integrated into one instrument, aging and hot filtration, using a single instrument completed.

2, the instrument uses imported glass fiber filter, filter weighing accuracy is poor.

3, can simultaneously detect two samples, but also do parallel test, easy to operate.

4, the use of digital temperature controller, temperature control accuracy up to ± 0.5 ℃, the temperature display and intuitive, accurate readings.

5, time use digital timer, time up 99h99m99s.

6, vacuum up 40KPa ± 2 KPa, vacuum degree of precision by the gauge display, precision vacuum pressure regulating valve

7, aging bath molding metal bath, safety, environmental protection, do sample unit to operate two holes.

8, the instrument uses metal bath replacement steam generators, the operation more secure, convenient and environmentally friendly.

Technical Parameters

1, the applicable standards: SH / T0701

2, the working environment: Relative temperature: 0 ~ 45 ℃

3, humidity: ≤80%

4, temperature: Digital PID temperature controller

5 - Timing: Digital timer

6, temperature range: room temperature ~ 100 ℃

7, temperature control accuracy: ± 0.5 ℃

8, vacuum pressure: Precision gauge shows

9, the working mode: two units

10, Total Power: 2000W

11, working power; AC220V ± 10% 50HZ
