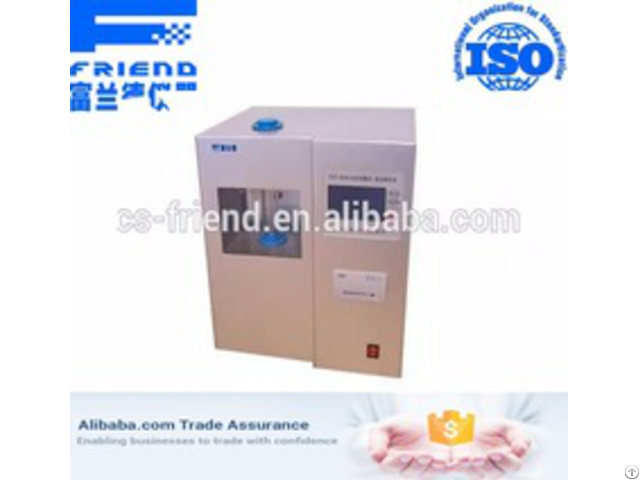

Fdt 0316 Automatic Pour And Freezing Point Tester - China

Scope

Automatic pour point and freezing point tester according to national standards GB / T510, GB / T3535 "oil pour point • Determination of pour point" provides design and manufacture.

Using liquid crystal screen full Chinese display interactive graphical interface with refrigeration depth, sample label, date and other parameters of the experiment, with menu-guided input, Chinese software prompts, with advanced technology, high technology content of the advantage over imported products replacement product.

Mainly used for transformer oil, diesel and other light oil.

Features

1, the screen graphic display and dynamic simulation test process;

2, real-time tracking oil temperature change state;

3, semiconductor refrigeration, test speed, accurate results;

4, can be tested separately pour, pour point, can be tested simultaneously in one machine;

5, oiling, testing, put oil, the computer automatically print test data;

6, with a test date, test time and other parameters are prompted;

7, the introduction of innovative XECOM US import data processing chip, fast and accurate data processing;

8, set up a special program to detect diesel pour point;

Technical Parameters

1, cooling speed: 10min> 40 ℃

2, cooling depth: -60 ℃

3, pour point repeatability: ± 2 ℃

4, freezing point repeatability: ± 2 ℃

5, the use of the environment: 5 ~ 40 ℃

6, Relative humidity: <85%

7, the power supply voltage: AC220V ± 10%

8, the cooling water pressure: 0.5kg / cm2

9, reproducibility: ± 4 ℃

10, power supply: AC220V ± 10%

11, frequency: 50Hz ± 1Hz
