Fiber Oil Extractor With Four Stations - China

Testing Standards of Rapid Grease Extraction Apparatus: Edana method ERT 155 Applications:

Rapid Grease Extraction Apparatus is designed to determine the grease or finish content of wool or synthetic samples by solvent percolation and evaporation.

Suitable for fiber, yarn or fabric.

Available with 1, 2 or 3 extraction units.

Product Information:

The Rapid Grease Extraction Apparatus was developed specifically for obtaining the oil content of tops and similar materials sufficiently quickly for the results to be available at the time of processing.

The principle of extraction is percolation of a solvent through the wool sample in a simple metal tube.

The extract, as it drips from the tube, is collected by a light aluminium tray held between two metal rings mounted on a temperature-controlled hot-plate.

Features:

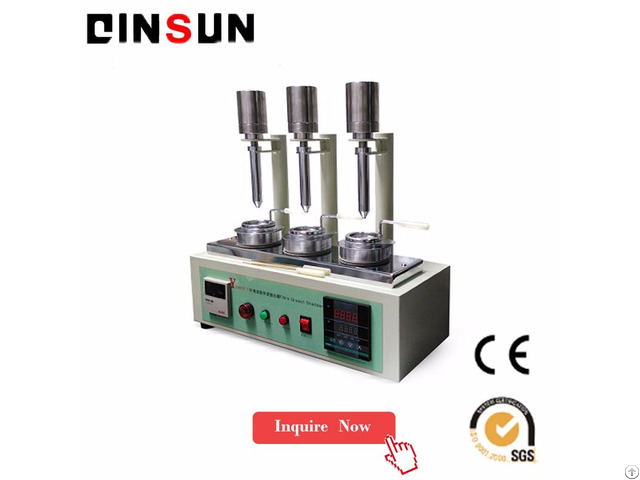

1 - The instrument consists of pedestal, extraction tub, weight, plunger, cotton wool plug, tray, and the hot-plate.

2 - The tube should be positioned in the hole in the lower support member of the apparatus, and the plunger boss placed in the hole in the upper support member.

3 - In use the plunger is placed through the boss and down into the tube.

The weight is then located on top of the plunger.
