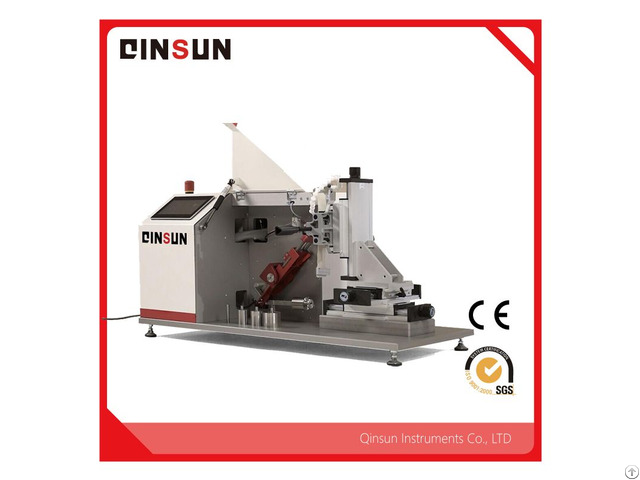

Fingertip Hand Abrasion Tester Innowep Test Machine With Norman Tool - China

Functionality of a product is considered as a matter of course, so the perception of quality is determined

primarily by the visual appearance.

Damage to a surface by the human hand is one of the main reason for disturbance of the products quality perception.

The hand abrasion is a very complex chemical and mechanical combination.

By touching a surface the human hand performs a mechanical strike followed by a push-slide force.

The human hand consists of a visco elastic material containing a rough

and structured surface.

In addition, sweat or hand cream creates a severe chemical environment.

Hand Abrasion Tester / soft-chemo-mechanical fingertip & hand abrasion tester is designed to do

real life testing of finished products or lab samples in regards of resistance to hand abrasion.

The

set-up of it is exactly reproducing the complex chemo mechanical system of the human hand abrasion according to international standards.

The flexible design of the tester allows various options and delivers reproducible results.

Specifications:

International Norm: EC 68-2-70

European Norm: EN 60068-2-70

German Norm: DIN 60068-2-70

Abrasion of markings and letterings caused by

rubbing of fingers and hands.

Technical data

Normal load: 1, 5, 10 N (20N optional)

Friction path: 1 - 40mm

Number of cycles: 1 -100 million

Fluid feed: cyclic

Fabric feed: cyclic

Power supply: 110 V / 230V Mechanical options

Standard fabric;

Simulation of human skin acc.

ISO 12947-1/IEC 68-2-70 Dirt affinity

Simulation of soiling of materials.

Cotton soiled with carbon back/oil (IEC).

Abrasion of leather

Simulation of rub resistance of leather.

Standard wool felt.

Abrasion Pads

Simulation of high-abrasive mechanical wear.

Abrastion Pad Scotch test

Simulation of abrasion with scotch pads.

More options on request.

Chemical options

Artificial Sweat

Artificial Sweat according to ISO 105 E04

or DIN 53160-2 - Hand cream / Sun lotion

Hand cream and Sun lotion according to customer specification.

More options on request.

Applications

Automotive market:

- Printing on switches

- Coating of door handles White goods:

- Printing

- Painted surface Computer industry:

- Keyboard

- Mouse
