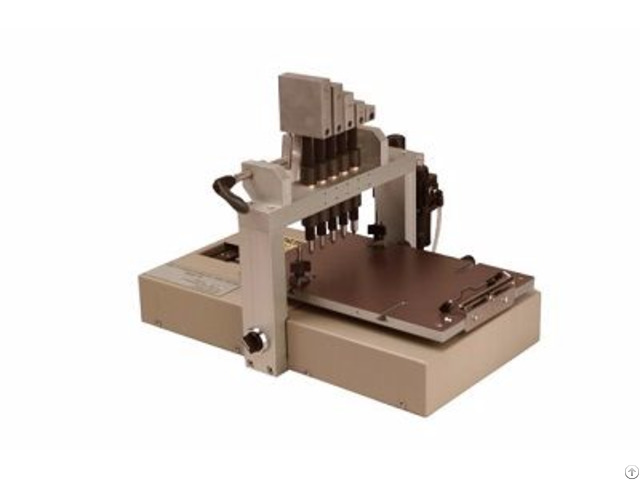

Five Finger Scratch Tester - China
price: 1.00 Dollar US$
Based on the apparatus described in popular automotive specifications, the instrument is commonly referred to as a five-finger (five-arm) scratch & mar tester and most often used to evaluate plastics.
Taber muiti-finger scratch tester - Model 710 is used to measure the relative resistance or susceptibility of a material surface to scratching, marring, gouging, scraping, engraving and other similar physical damage not classified as ordinary wear.
Standards
· Ford BN 108-13 : Resistance to Scratching
· General Motors DMN3943
· Danmler-Chrysler LP-463DD-18-01:Automoti ve standards Features 1 - Precision instrument measures damage to surfaces not classified as ordinary wear.
Using precision tips, the Taber Multi-Finger Scratch/Mar Tester is used to measure the susceptibility of material surfaces to scratching, marring, gouging, and other similar physical damage not classified as ordinary wear.
2 - Design based on five-finger scratching device described in automotive specifications.
Specimens are secured to a pneumatically driven platform.
Five independent spline-shaft fingers with varying weights exert a constant, vertical load on the test specimen as it travels under interchangeable scratch tips.
Spline-shaft fingers are mounted on a rigid gantry platform.
Support rests allow the operator to secure individual shafts in a rest position, permitting the testing of nonstandard width samples.
3 - Test a wide range of products.
The ‘five-finger’ scratch tester has been popular in the automotive industry for testing smooth or grained plastics commonly used in ornamentation or trim.
Useful for quality control as well as material or product development, the Multi-Finger Scratch / Mar Tester is ideal for evaluating plastics, rigid organic materials, paints and coatings, soft metals, linoleum, plus many others.
Company Contact:
- Posted By: Qinsun Instruments (Shanghai) Co., Ltd.
- Phone: +862164200566
- Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China
- Email:
- Website: https://www.qinsun-lab.com
Published date: March 14, 2019
- Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.
Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.
Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.
We have our own textile testing lab.
Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.
We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.
We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.
For the laboratory requirements, we also bring forth the new practical test instruments.
Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
