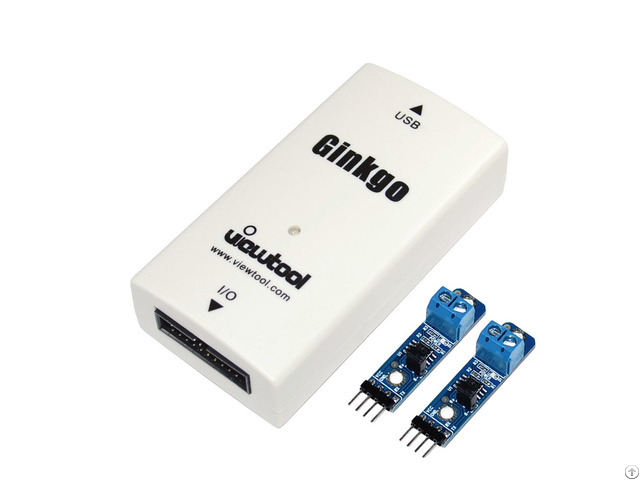

Ginkgo Usb Can Bus Adapter - China

Brand：ViewTool Model：VTG202A Typical Applications: - CAN bus data sending and receiving via USB of PC - CAN bus to USB gateway - Extend the distance of CAN bus network communication - CAN network data acquisition and analysis - USB to CAN network interface - CAN network diagnosis and test - Analog voltage measurement and GPIO input or output control - PWM signal output - USB to dual serial port/TTL (compatible with RS485 bus mode) Feature: - Support Linux, MAC OS, Windows, Android.

- USB bus power supply without external power; 5V and 3.3V output; max current 500mA; short circuit protection.

- 2 channels support CAN bus protocol of 2.0A and 2.0B.

- each channel filter settings up to 14 contains 1200 frame buffer.

- It counts the error of CAN bus send or receive and displays the error type real-time.

- There is much kinds of free PC software compatible with the LabviEW interface to deal with different requirement.

- There are four modes: normal mode, loop back mode, silent mode and Loop back combined with silent mode.

The adapter can be self test.

- Multiple USB-CAN Bus adapter can work in one PC at the same time (up to 100).

- The firmware can free update or change (such as I2C/SPI) by Own Bootloader program.

- Provide secondary development API and API detailed document and all kinds of languages platform application examples (Labview, C#, VC, Qt, Python, Labwindows/CVI, C++ Builder, VB, VB.

NET, Delphi, CodeBlocks etc.

).

Performance: - USB 2.0;bus-powered.

- Max transmission rate up to 1M bps;Min transmission rate 2K bps.

- 8 channels GPIO mode up to 400K.

- 8 channels ADC (12bit) analog voltage signals (0~3.3V) measurements; max sampling rate 1MHz.

- 16 channels GPIO outgoing control high or low level and all pin compatible with TTL level.

- 4 channels Pulse counter input.

- 2 channels UART can output RS485 signal (DE); max baud rate up to 2.25Mbps.

- 8 channels PWM signal output; duty ratio (0%~100%); frequency range: 1Hz to 20MHz.

- 16 channels EasyScale bus signal output and bus timing can be adjusted.

- 2 channels SDI12 bus output (need external transceiver).

- Safe voltage: 0~5V - Size: 103mm×53mm×28mm; Weight: ≈200g - Temperature range: -40℃～85℃
