Glazing Materials Ball Test Device - China

price: 5000.00 Dollar US$

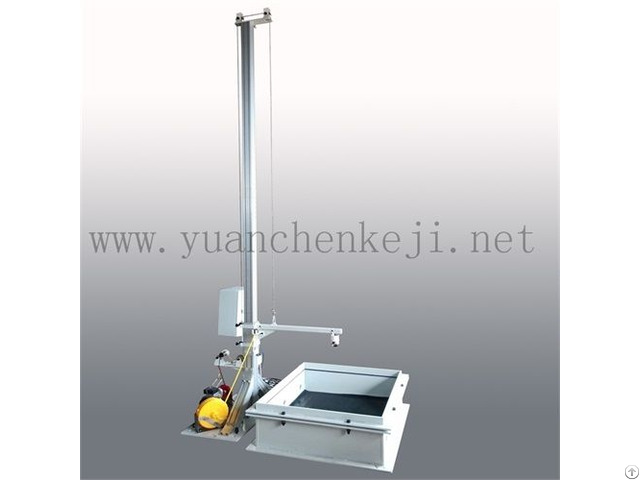

Glazing Materials Ball Test Device

Products Photos Catalog Glazing Ball Test Photos Catalog

Function: Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object Suitable for impact test of safety glass and tempered glass.

Related Standard: ISO 3537Road vehicles — Safety glazing materials — Mechanical tests– Clause 6: 227 g ball test, Clause 7: 2260 g ball test

GB 15763.3 Safety glazing materials in building Part 3: Laminated glass–Appendix B Drop ball impact specimen support

Technical Data: Hardened steel ball: 2260g ± 20g, diameter of approximately 82mm 1040g ± 10g, diameter of approximately 63 mm 227g ± 2g, diameter of approximately 38 mm Steel ball adsorption mode: Electrocircuit controlled electromagnet suction cup Lifting and lowering mode of control lever: manual or automatic Drop height of steel ball: 1m /3m/5m/12m, customizable Supporting fixture:

Support size: 350mm*350mm and 660mm*660mm (Customized)

Frame width: 15mm

Steel box height: 150mm

Rubber gasket: thickness 3mm, width 15mm, hardness shore A50

Interposed sheet of rubber: thickness 3mm, hardness shore A50

Applied Test Pieces Size: 300mm*300mm and 610mm* 610mm


Company Contact:


  • Phone: 863353899615

  • Address: Northern Industrial Zone, Haigang District,, Qinhuangdao , Hebei , China

  • Email: Email


Published date: June 14, 2020

  • Business Description: Yuanchen supply nonstandard metal stamping, sheet metal working, sheet metal fabrication, laser cutting service, safety glass testing equipment, metal bracket, sheet metal bending, sheet metal forming etc.

    Customized OEM service and Free Sample Confirmed.

    Qinhuangdao Yuanchen Hardware Co., Ltd. is special in metal processing and nonstandard metal parts.

    Products are widely used in:

    Auto Parts

    Indurtry Parts

    Electronic parts

    Machinery Parts

    Cosplay metal parts

    Construction Fittings

    Photovoltaic hardware

    Sports equipment parts

    Medical device metal parts

    Cosplay metal parts

    Glass inspection equipment

    OEM/ODM

    Sheet metal fabrication/Nonstandard parts

    Metal laser cutting/Stamping/Bending/ Welding/Punching/Blanking /Forming

    Various of safety glass impact test equipment and parts

    Brackets/Gasket/Cab le hanger/Connector/Clip/Cla mp/Iron fittings/Hinge
