Global Shutter 2 3 Ccd Camera S1tc05c Cm For Fluorescent Imaging - China

price: 999.00 Dollar US$

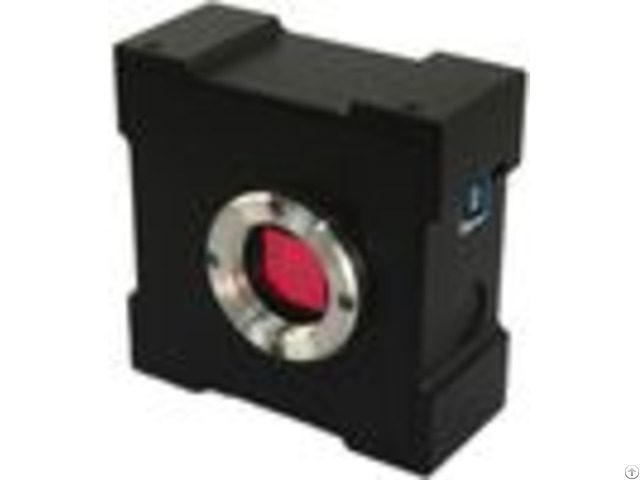

Global Shutter 2 3 Ccd Camera S1tc05c Cm For Fluorescent Imaging

Products Photos Catalog Shutter Ccd Camera Photos Catalog

Parameter Specification Model S1TC05C-C/M

SENSOR size 2/3" 5.0Mega CCD Color/white &black

Pixel size 3.45μm×3.45μm

Scanning method Progressive

Quantum efficiency(max) >50%@520nm

Frame rate 6fps@2456x2058(12bit), Shutter Global Shutter

Dynamic Range 64dB

SNR 41dB

Spectral Response 400-1000nm

Data interface USB3.0 5Gbps

Control interface USB Cable 3M

Power DC 5V±5%

Current <500mA

White balance Manual white balance, Auto white balance, area white balance

Exposure time 28us~1.8s

Exposure control Auto/Manual, Area Exposure Lens interface C interface(CS Interface)

Working indicator Power status indicators Working temperature 0℃-60℃

Working Humidity 0-85%

Software Specturmsee Advance

Camera Size 60mmx60mmx60mm about 145g


Company Contact:


  • Phone: +8602038077661

  • Address: 3rd Floor ,Number 59 Tangdong East Road, Guangzhou China, Guangzhou , Guangdong , China

  • Email: Email

Published date: December 4, 2017

  • Business Description: As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business.

    With quality and integrity at our core, we deliver best-in-class camera and related product.

    JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.

    The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time.

    Being a leader of camera designer in China, JPLY is developing to a world class brand.

    We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
