Good Price Carpet Hexapod Drum Tester - China

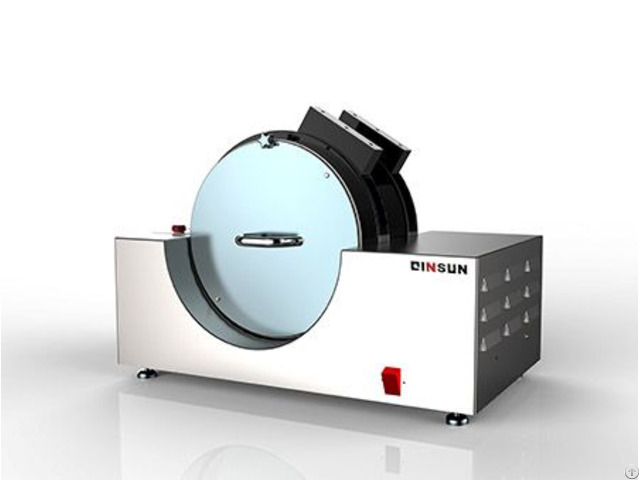

hexapod tumbler tester equipment manufacturer Introduction: The Hexapod Tumbler Tester is a popular apparatus used in the evaluation of the appearance retention of carpets.

Core advantages: Specimens of carpet are fastened to a flexible backing sheet with double-sided adhesive tape.

This assembly is fitted on the inside surface of the drum and can easily be removed at any stage for inspection of the specimens under test.

If required, an underlay may be fitted beneath the carpet for direct comparison with normal use.

The drive to the drum incorporates a reversing mechanism to give more realistic pile disturbance, and the required number of revolutions may be preset on a revolution counter.

The 3.8kg tumbler has six polyurethane stud feet.

The carpet specimens are treated for 2, 000 revolutions, which takes approximately one hour.

They are then taken out of the drum on their backing sheet and cleaned using an upright vacuum cleaner simulating practical usage.

The specimens are replaced and the treatment repeated, normally six times, giving a total of 12, 000 revolutions.

After the final vacuum cleaning, the change in appearance is assessed against an appropriate set of ISO reference scales.

·Widely used in the evaluation of the appearance retention of carpets ·Can test with underlay underneath the carpet ·Provides a rapid method of test - completion within one working day

Applicable Standards: BS EN 1471: 1997, ISO 9405: 2001 IWS test methods 247 & 251, ISO 10361: 2000 (BS) Wools of New Zealand test methods 247 & 251

Specifications: Dimensions: 430mm×780mm×400mm(W×Dà —H) Power Consumption: 375W

Basic configuration: _ Replacement polyurethane stud feet _ Drum liner
